Dexter 9K, 10K & 13G General Duty Two-Piece Hub & Drum
8 Studs on 6.50" Bolt Circle
Before July 2009

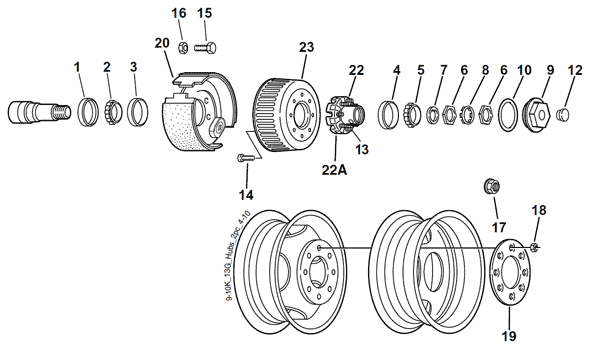

Dexter 9K, 10K, and 13G Two-Piece Hub & Drum Axle Parts Breakdown
\
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks

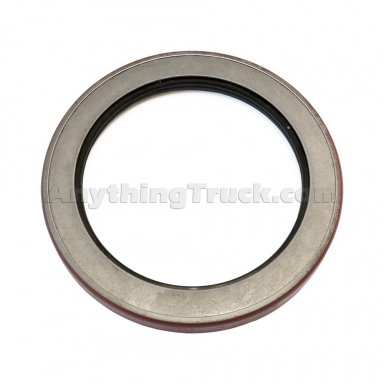

1 220-10512 Wheel Seal 1 010-051-02 Replaces old Dexter part number 010-051-00
2 760-387A Inner Bearing Cone 1 031-019-02
3 760-382A Inner Bearing Cup 1 031-019-01 Included with 220-82883 hub
4 760-25520 Outer Bearing Cup 1 031-030-01 Included with 220-82883 hub
5 760-25580 Outer Bearing Cone 1 031-030-02

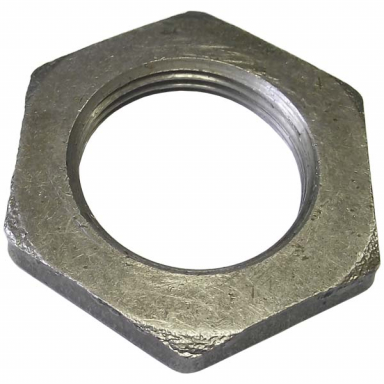

6 220-696Axle Nut 2 006-096-00

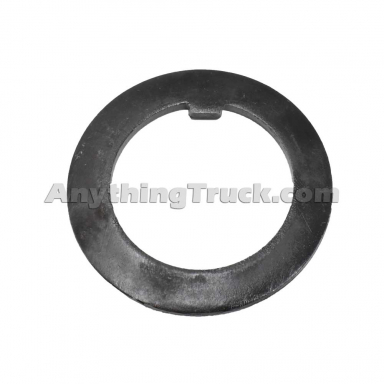

7 220-570 Spindle Washer 1 005-070-00
8 220-571 Tang Washer 1 005-071-00
9 220-7139 Hub Cap Assy 1 K71-148-00
021-036-00
Includes O-ring and plug
10 220-1050 Hub Cap O-Ring 1 010-050-00
12 220-4632 Hub Cap Plug 1 046-032-00
13 220-7115 Wheel Stud 8 007-115-00 5/8 -18 Press-in stud, Included with 220-82145 hub
14 220-7244 Drum Bolt 8 007-244-00
15 220-7116 Brake Mounting Bolt 7 007-116-00
16 220-6921 Brake Mounting Nut 7 006-092-01
    Lock Washer 7 005-008-00
17   5/8 -18 Flange Nut 8 006-058-00
18 130-M248 Wheel Nut 8 006-109-00
19 220-33521 Wheel Clamp Ring 1 033-052-01
20 220-23450 LH Electric Brake Assy 1 K23-450-00 12-1/4"x3-3/8", 7-Bolt, cast iron backing plate
220-23451 RH Electric Brake Assy 1 K23-451-00 12-1/4"x3-3/8", 7-Bolt, cast iron backing plate
22 220-82883 Hub Assembly 1 008-288-03 Includes studs and bearing races
22A   Hub Assembly 1 008-288-07 10K & 13G Disc brake hub, Includes studs and bearing races
23 220-9441 Brake Drum 1 009-044-01 12-1/4"x3-3/8" brake drum
23A 220-762 Brake Rotor 1 070-006-01
070-006-02
ABS disc brake rotor, replaces non-ABS rotors
28 220-646 Rotor Mounting Nut
1/2"-20
8 006-046-00
29 220-2514 Rotor Mounting Stud
1/2"-13 x 1/2"-20 x 2.53" Long
8 025-014-00
  220-8922 Disc Brake Caliper 1 089-002-02
  220-K71180 Brake Pad Kit 1 K71-180-00
  220-00718600 Brake Caliper Mounting Bolt 2 007-186-00 Use 220-6125 nut
