Dexter 7200 lbs. One-Piece Hub & Drum
8 Studs on 6.50" Bolt Circle
865 Hub Group

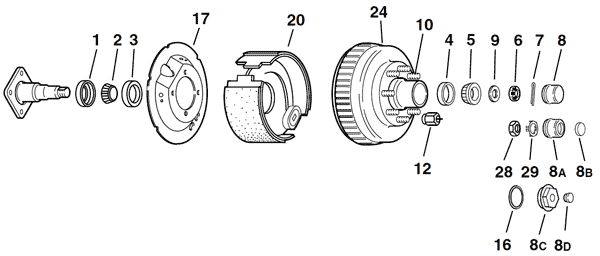

Dexter 7.2K One-Piece Hub & Drum Axle Parts Breakdown
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks
1 220-1054 Grease Seal 1 010-054-00
220-1063 Oil Seal 1 010-063-00
2 760-25580 Inner Bearing Cone 1 031-030-02
3 760-25520 Inner Bearing Cup 1 031-030-01
4 760-02420 Outer Bearing Cup 1 031-028-01
5 760-02475 Outer Bearing Cone 1 031-028-02
6 220-6176 Axle Nut 1 006-176-00
7 220-192 Cotter Pin 1 019-002-00
8 220-2139 Grease Cap 1 021-039-00
8A 220-21431 E-Z Lube Grease Cap 1 021-043-01
8B 220-851 Plug for E-Z Lube Grease Cap 1 085-001-00
8C 220-7138 Screw-On Oil Cap 1 K71038
021-035-00
Includes O-ring and plug
8D 220-4632 Plug for oil Cap 1 046-032-00
9 005-057-00 Spindle Washer 1 005-057-00
10 220-7122 1/2"-20 Wheel Stud 8 007-122-00
  9/16"-18 Wheel Stud 8 007-223-00
  5/8"-18 Wheel Stud 8 007-224-00
12 130-M236 9/16"-18 60° Cone Nut 8 006-053-00
130-M248 5/8"-18 90° Cone Nut 8 006-109-00
16 220-1045 O-Ring for Oil Cap 1 010-045-00 Included with oil cap assembly
17 036-118-20 Dust Shield 1 036-118-20 After 05/2000 with cast backing plate brakes
20 220-23428 LH Electric Brake Assy 1 K23-428-00 After 05/2000, 12-1/4"x2-1/2", 4-Bolt, cast iron backing plate
220-23429 RH Electric Brake Assy 1 K23-429-00 After 05/2000, 12-1/4"x2-1/2", 4-Bolt, cast iron backing plate
220-23370 LH Electric Brake Assy 1 K23-370-00 Before 05/2000, 12-1/4"x2-1/2", 4-Bolt, Stamped steel backing plate
220-23369 RH Electric Brake Assy 1 K23-369-00 Before 05/2000, 12-1/4"x2-1/2", 4-Bolt, Stamped steel backing plate
24   Hub/Drum Assembly 1 008-393-10 Grease, 1/2" Studs, 8 on 6.50", includes bearing cups
  Hub/Drum Assembly 1 008-393-04 Grease, 9/16" Studs, 8 on 6.50", includes bearing cups
  Hub/Drum Assembly 1 008-393-06 Grease, 5/8" Studs, 8 on 6.50", includes bearing cups
  Hub/Drum Assembly 1 008-393-09 Oil, 1/2" Studs, 8 on 6.50", includes bearing cups
  Hub/Drum Assembly 1 008-393-03 Oil, 9/16" Studs, 8 on 6.50", includes bearing cups
  Hub/Drum Assembly 1 008-393-05 Oil, 5/8" Studs, 8 on 6.50", includes bearing cups
28 220-6191 Axle Nut for E-Z Lube 1 006-191-00 (after 2002)
29 220-6190 Retainer for E-Z Lube Axle Nut 1 006-190-00 (after 2002)
