Dexter 2300 - 3500 lbs.Capacity
with L68149 Inner Bearing Cone

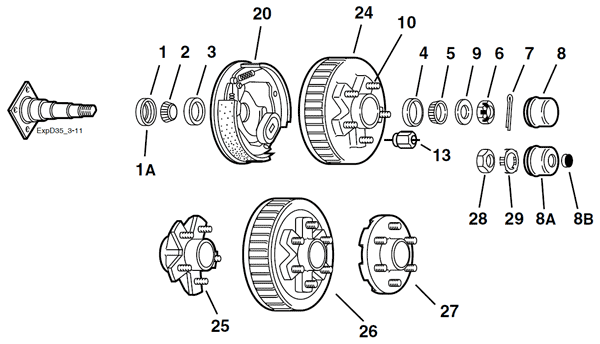

Dexter 2300-3500 lbs Capacity Axle Parts Breakdown
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks

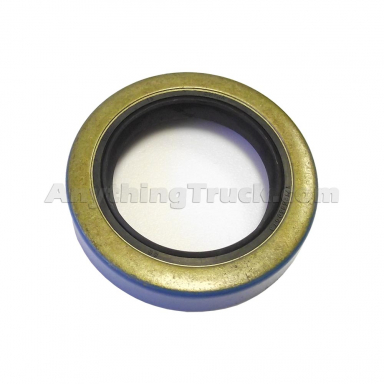

1 220-1019 Grease Seal, 1.719" ID 1 010-019-00
2 760-L68149 Inner Bearing Cone 1 031-033-02
3 760-L68111 Inner Bearing Cup 1 031-033-01
4 760-L44610 Outer Bearing Cup 1 031-031-01
5 760-L44649 Outer Bearing Cone 1 031-031-02
6 220-6176 Axle Nut 1 006-176-00
7 220-192 Cotter Pin 1 019-002-00

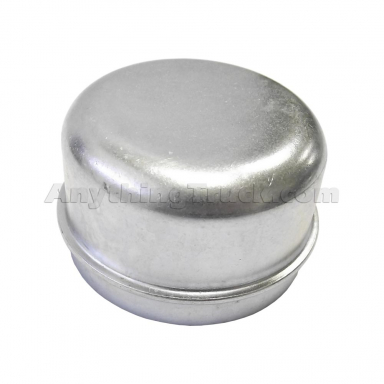

8 220-213 Grease Cap 1 021-003-00

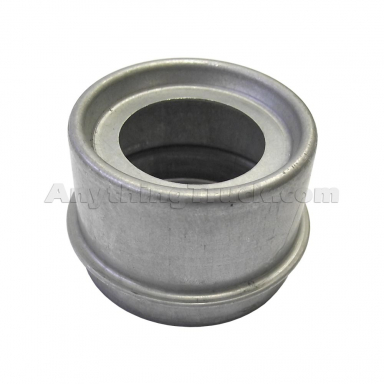

8A 220-21411 E-Z Lube Grease Cap 1 021-041-01
8B 220-851 Plug for E-Z Lube Grease Cap 1 085-001-00

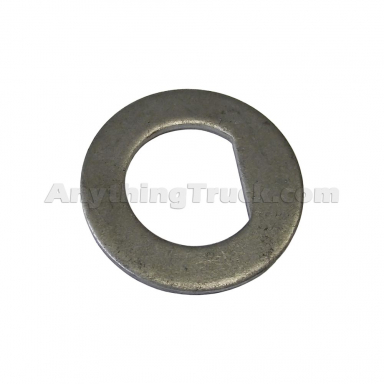

9 220-523 Spindle Washer 1 005-023-00
10 220-7122 1/2"-20 x 1.84" L Wheel Stud 6 007-122-00
13 130-M203 1/2"-20 60° Cone Nut 5/6 006-080-00
20 220-2326 10"x2-1/4" LH Electric Brake Assy 1 K23-026-00
220-2327 10"x2-1/4" RH Electric Brake Assy 1 K23-027-00
220-23344 10"x2-1/4" LH Hydraulic Free Backing Brake Assy 1 K23-344-00
220-23345 10"x2-1/4" RH Hydraulic Free Backing Brake Assy 1 K23-345-00
n/a LH/RH Electric Brake Assy (Nev-R-Adjust)   K23-468-00/K23-469-00 10"x2-1/4"
n/a LH/RH Electric Brake with Park   K23-086-00/K23-087-00 10"x2-1/4"
n/a LH/RH Hydraulic Brake (Uni-Servo)   K23-312-00/K23-313-00 10"x2-1/4"
n/a LH/RH Hydraulic Brake (Uni-Servo with Park)   K23-330-00/K23-331-00 10"x2-1/4"
n/a LH/RH Hydraulic Brake (Duo-Servo)   K23-310-00/K23-311-00 10"x2-1/4"
n/a LH/RH Hydraulic Brake (Duo-Servo with Park)   K23-400-00/K23-401-00 10"x2-1/4"
24 220-82475 Hub/Drum Assembly
5 on 4.50", includes bearing cups
1 008-247-05 1/2" Studs
220-82497 Hub/Drum Assembly
5 on 5.00", includes bearing cups
1 008-249-07 1/2" Studs
220-82495 Hub/Drum Assembly
5 on 5.50", includes bearing cups
1 008-249-05 1/2" Studs
220-824712 Hub/Drum Assembly
5 on 4.75", includes bearing cups
1 008-247-12 1/2" Studs
25 220-82485 Idler Hub
5 on 4.50", includes bearing cups
1 008-248-05 1/2" Studs
220-824810 Idler Hub
5 on 4.75", includes bearing cups
1 008-248-10 1/2" Studs
220-82567 Idler Hub
5 on 5.00", includes bearing cups
1 008-256-07 1/2" Studs
220-82565 Idler Hub
5 on 5.50", includes bearing cups
1 008-256-05 1/2" Studs
26 220-82505 Hub/Drum Assembly
6 on 5.50", includes bearing cups
1 008-250-05 1/2" Studs
27 220-82515 Idler Hub
6 on 5.50", includes bearing cups
1 008-251-05 1/2" Studs
28 220-6191 Axle Nut for E-Z Lube 1 006-191-00 (after 2002)
29 220-6190 Retainer for E-Z Lube Axle Nut 1 006-190-00 (after 2002)
