Dexter 10K & 13D Hub Group
8 Studs on 6.50" Bolt Circle

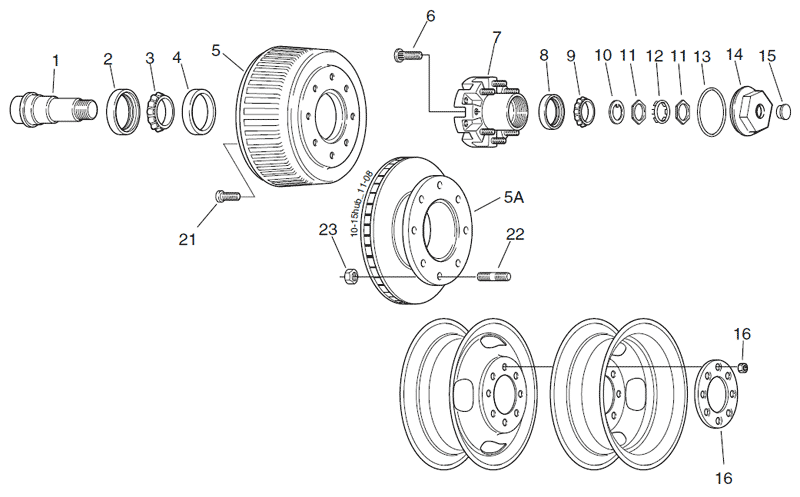

Dexter 10K and 13D Axle Parts Breakdown
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks
1 N/A Axle Spindle 1 N/A
2 220-1056 Wheel Seal 1 010-056-00
3 760-395S Inner Bearing Cone 1 031-022-02
4 760-394A Inner Bearing Cup 1 031-022-01 Included with 220-82145 hub

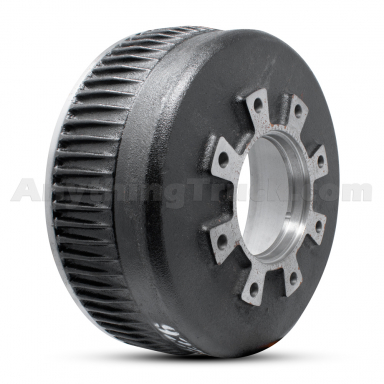

5 220-9273 Brake Drum 1 009-027-03 12-1/4"x4" brake drum with ABS, Remove ABS ring for electric brake applications

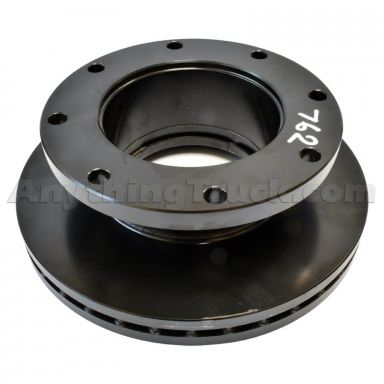

5A 220-762 Brake Rotor 1 070-006-02 ABS rotor, can be used to replace non-ABS rotors
6 220-7115 Wheel Stud 8 007-115-00 Included with 220-82145 hub

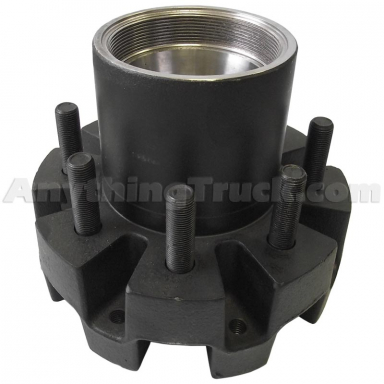

7 220-82145 Hub Assembly 1 008-214-05 Includes studs and bearing races
8 760-382A Outer Bearing Cup 1 031-019-01 Included with 220-82145 hub
9 760-387A Outer Bearing Cone 1 031-019-02
10 220-560 Spindle Washer 1 005-060-00
11 220-684 Axle Nut 2 006-084-00
12 220-559 Tang Washer 1 005-059-00
13 220-1050 Hub Cap O-Ring 1 010-050-00
14 220-7139 Hub Cap Assy 1 K71-148-00
021-036-00
Includes O-ring and plug
15 220-4632 Hub Cap Plug 1 046-032-00
16 130-M248 Wheel Nut 8 006-109-00
16 220-33521 Wheel Clamp Ring 1 033-052-01
21 220-7244 Drum Bolt 8 007-244-00
22 220-2514 Rotor Mounting Stud 8 025-014-00
23 220-646 Rotor Mounting Nut 8 006-046-00
  220-23438 LH Electric Brake Assy 1 K23-438-00 12-1/4"x4", 7-Bolt, cast iron backing plate
  220-23439 RH Electric Brake Assy 1 K23-439-00 12-1/4"x4", 7-Bolt, cast iron backing plate
  220-8922 Disc Brake Caliper 1 089-002-02

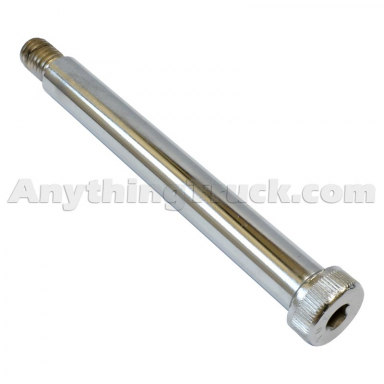

  220-00718600 Brake Caliper Mounting Bolt 2 007-186-00 Use 220-6125 nut

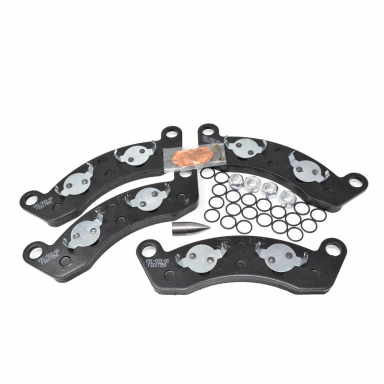

  220-K71180 Disc Brake Pad Kit 1 K71-180-00 Does one axle
