Dexter 9K, 10K & 13G General Duty One-Piece Hub & Drum
8 Studs on 6.50" Bolt Circle
After July 2009

Dexter 9K, 10K, and 13G Two-Piece Hub & Drum Axle Parts After April 2013 Breakdown
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks
1 220-10512 Wheel Seal 1 010-051-02 Supercedes PN# 010-051-00 and 010-051-01
2 760-387A Inner Bearing Cone 1 031-019-02
3 760-382A Inner Bearing Cup 1 031-019-01 Included with 220-84303 hub
4 760-25520 Outer Bearing Cup 1 031-030-01 Included with 220-84303 hub
5 760-25580 Outer Bearing Cone 1 031-030-02
6 220-696 Axle Nut 2 006-096-00
7 220-570 Spindle Washer 1 005-070-00
8 220-571 Tang Washer 1 005-071-00

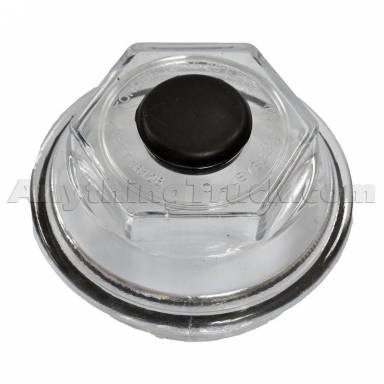

9 220-7174 Hub Cap Assy 1 K71-704-00
021-088-00
Includes O-ring and plug
10   Hub Cap O-Ring 1 010-163-00
12 220-4632 Hub Cap Plug 1 046-032-00
13 220-7115 Wheel Stud 8 007-115-00 5/8 -18 Press-in stud, Included with 220-84303 hub
14 220-7116 Brake Mounting Bolt 7 007-116-00
15 220-6921 Brake Mounting Nut 7 006-092-01
    Lock Washer 7 005-008-00
17   5/8 -18 Flange Nut 8 006-058-00
18 130-M248 Wheel Nut 8 006-109-00
19 220-33521 Wheel Clamp Ring 1 033-052-01
20 220-23450 LH Electric Brake Assy 1 K23-450-00 12-1/4" x 3-3/8", 7-Bolt, cast iron backing plate
220-23451 RH Electric Brake Assy 1 K23-451-00
21 220-23410 LH Hydraulic Brake Assy 1 K23-410-00 FSA, Duo-Servo, No Park
12-1/4" x 3-3/8", 7-Bolt, cast iron backing plate
220-23411 RH Hydraulic Brake Assy 1 K23-411-00
23 Hub & Drum Assy 1 008-415-02
008-415-04
Obsolete - Must switch to the new two-piece hub and drum
Brake Drum 220-91233, Hub 220-84303
26   ABS Sensor, Straight 1 097-004-00
27   ABS Sensor Block 1 097-204-00
28   ABS Sensor Clip 1 097-002-00
29   ABS Tone Ring 1 024-201-01
    Tone Ring Screws 4 097-248-00
