Dexter 8K, 8 on 6.50"

Dexter 8K One-Piece Hub & Drum
8 Studs on 6.50" Bolt Circle
865 Hub Group

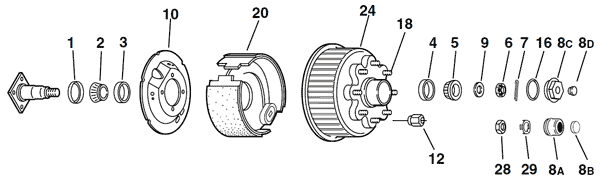

Dexter 8K One-Piece Hub & Drum Axle Parts Breakdown

Key No.	Part Number	Description	No. Required Per Wheel	Dexter Number	Remarks
1	220-1054	Grease Seal	1	010-054-00
1	220-1063	Oil Seal	1	010-063-00
2	760-25580	Inner Bearing Cone	1	031-030-02
3	760-25520	Inner Bearing Cup	1	031-030-01
4	760-02420	Outer Bearing Cup	1	031-028-01
5	760-02475	Outer Bearing Cone	1	031-028-02
6	220-6176	Axle Nut	1	006-176-00
7	220-192	Spindle Washer	1	019-002-00
8	220-2139	Grease Cap	1	021-039-00
8A	220-21431	E-Z Lube Grease Cap	1	021-043-01
8B	220-851	Plug for E-Z Lube Grease Cap	1	085-001-00
8C	220-7138	Screw-On Oil Cap	1	K71038 021-035-00	Includes O-ring and plug
8D	220-4632	Plug for oil Cap	1	046-032-00
9	220-557	Spindle Washer	1	005-057-00
10	220-3611520	Dust Shield	1	036-115-20
10		Dust Shield for brakes with park	1	036-115-24
12	130-M236	9/16"-18 60° Cone Nut	8	006-053-00
12	130-M248	5/8"-18 90° Cone Nut	8	006-109-00
16	220-1045	O-Ring for Oil Cap	1	010-045-00	Included with oil cap assembly
18	220-7132	9/16"-18 Wheel Stud	8	007-132-00
18	130-M96	5/8"-18 Wheel Stud	8	007-232-00
20	220-23434	LH Electric Brake Assy	1	K23-434-00	12-1/4"x3-3/8", 4-Bolt, cast iron backing plate
	220-23435	RH Electric Brake Assy	1	K23-435-00	12-1/4"x3-3/8", 4-Bolt, cast iron backing plate
	220-23402	LH Hydraulic Brake Assy	1	K23-402-00	Duo Servo, 12-1/4"x3-3/8", 4-Bolt, cast iron backing plate
	220-23403	RH Hydraulic Brake Assy	1	K23-403-00	Duo Servo, 12-1/4"x3-3/8", 4-Bolt, cast iron backing plate
24	220-82858	Hub/Drum Assembly	1	008-285-08	Grease, 5/8" Studs, 8 on 6.50", includes bearing cups
	220-82859	Hub/Drum Assembly	1	008-285-09	Oil, 9/16" Studs, 8 on 6.50", includes bearing cups
	220-828510	Hub/Drum Assembly	1	008-285-10	Oil, 5/8" Studs, 8 on 6.50", includes bearing cups
	220-00828511	Hub/Drum Assembly	1	008-285-11	Grease, 9/16" Studs, 8 on 6.50", includes bearing cups
28	220-6191	Axle Nut for E-Z Lube	1	006-191-00	(after 2002)
29	220-6190	Retainer for E-Z Lube Axle Nut	1	006-190-00	(after 2002)
