15K Dexter Hub Group
8 Studs on 275mm Bolt Circle

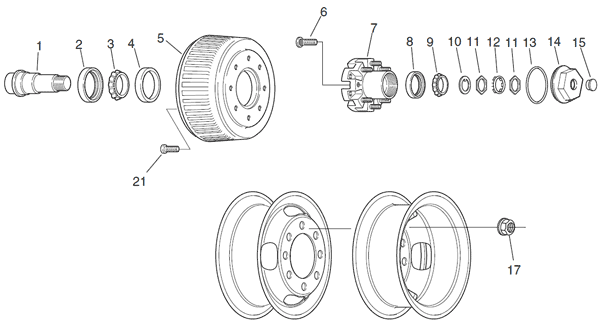

15K Dexter Axle Parts Breakdown
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks
1 N/A Axle Spindle 1 N/A
2 220-1056 Wheel Seal 1 010-056-00
3 760-3984 Inner Bearing Cone 1 031-020-02
4 760-3920 Inner Bearing Cup 1 031-020-01
5 220-9285 Brake Drum 1 009-028-05 12-1/4"x5" brake drum with ABS
6   Std. Wheel Stud 8 007-194-00
  Long Wheel Stud 8 007-194-00
7   Hub Assembly 1 008-401-05 15K Hub with std. length studs and bearing races
  Hub Assembly 1 008-401-06 15K Hub with long studs and bearing races
8 760-28622 Outer Bearing Cup 1 031-021-01
9 760-28682 Outer Bearing Cone 1 031-021-02
10 220-560 Spindle Washer 1 005-060-00

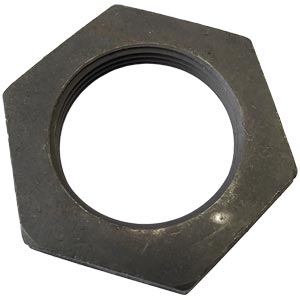

11 220-684 Axle Nut 2 006-084-00
12 220-559 Tang Washer 1 005-059-00
13 220-1050 Hub Cap O-Ring 1 010-050-00
14 220-7139 Hub Cap Assy 1 K71-148-00
021-036-00
Includes O-ring and plug
15 220-4632 Hub Cap Plug 1 046-032-00
17   Flange Nut 1 006-118-00

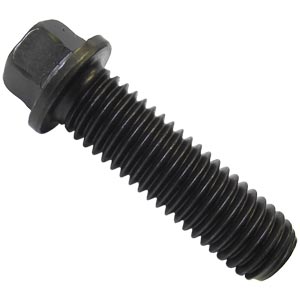

21 220-7244 Drum Bolt 8 007-244-00
  220-23446 LH Electric Brake Assy 1 K23-446-00 7-Bolt, cast iron backing plate
  220-23447 RH Electric Brake Assy 1 K23-447-00 7-Bolt, cast iron backing plate
