Complete Replacement Electric Trailer Brakes

These are complete electric brake assemblies for replacement of your Dexter trailer brakes. The brake shoes and hardware are pre-assembled onto a new backing plate, so all you have to do is cut the electric wires near your current backing plate, unbolt and remove the backing plate, and bolt up the new backing plate and attach the included brake's wires. It's that simple.

Right-Hand, Left-Hand, Which do I need? It is a simple task to determine whether you need a left or right-hand brake assembly. Look at your existing electric trailer brake assembly with the magnet at the bottom. The electric brake actuating arm with the magnet attached is connected to a hinge pin near the top of the backing plate. The actuating arm is going to curve around to the left or right. If it curves to the right, you need a right-hand electric brake assembly. If it curves left, you need a left-hand brake assembly.

10" x 2-1/4" Electric Brake Assemblies
with 4 Bolt Backing Plate for Dexter Trailer Axles

These are replacement brake assemblies for 3,500 pound Dexter trailer axles with 10" x 2.25" electric brakes.
These brake assemblies replace Dexter part numbers: K23-026-00 and K23-027-00.

  Part
Number
Description
10" x 2.25" LH Electric Brake Assembly with 4 Bolt Backing Plate for Dexter Axles 2326 10" x 2.25" LH Electric Brake Assembly with 4 Bolt Backing Plate for Dexter Axles More Info
10" x 2.25" RH Electric Brake Assembly with 4 Bolt Backing Plate for Dexter Axles 2327 10" x 2.25" RH Electric Brake Assembly with 4 Bolt Backing Plate for Dexter Axles More Info


12" x 2" Electric Brake Assemblies
with 5 Bolt Backing Plate for Dexter Trailer Axles

These are replacement brake assemblies for Dexter trailer axles up to 6,000 pounds with 12" x 2" electric brakes.
These brake assemblies replace Dexter part numbers: K23-105-00 and K23-105-00.

  Part
Number
Description
12" x 2" LH Electric Brake Assembly with 5 Bolt Backing Plate for Dexter Axles 23105 12" x 2" LH Electric Brake Assembly with 5 Bolt Backing Plate for Dexter Axles" More Info
12" x 2" RH Electric Brake Assembly with 5 Bolt Backing Plate for Dexter Axles 23106 12" x 2" RH Electric Brake Assembly with 5 Bolt Backing Plate for Dexter Axles More Info


12" x 2" Electric Brake Assemblies
with 4 Bolt Backing Plate for Dexter Trailer Axles

These are replacement brake assemblies for Dexter trailer axles up to 6,000 pounds with 12" x 2" electric brakes. Note that these brake assemblies are drilled to fit Dexter's 4 and 5 bolt mounting patterns.
These brake assemblies replace Dexter part numbers: K23-105-09 and K23-106-09.

  Part
Number
Description
12" x 2" LH Electric Brake Assembly with 4 Hole and 5 Hole Mounting Patterns for Dexter Axles 231059 12" x 2" LH Electric Brake Assembly with 4 Hole and 5 Hole Mounting Patterns for Dexter Axles More Info
12" x 2" RH Electric Brake Assembly with 4 Hole and 5 Hole Mounting Patterns for Dexter Axles 231069 12" x 2" RH Electric Brake Assembly with 4 Hole and 5 Hole Mounting Patterns for Dexter Axles More Info


12-1/4" x 2-1/2" Electric Brake Assemblies
with 4 Bolt Cast Backing Plate for Dexter Trailer Axles

These are replacement brake assemblies for Dexter 7.2K trailer axles with 12.25" x 2.50" electric brakes. These brake assemblies have the cast backing plate with 4 mounting holes.
These brake assemblies replace Dexter part numbers: K23-428-00 and K23-429-00.

  Part
Number
Description

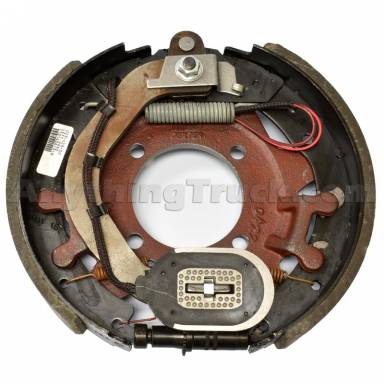

12-1/4" x 2-1/2" 7.2K LH Electric Brake Assy with 4 Bolt Backing Plate for Dexter Axles 23428 12-1/4" x 2-1/2" 7.2K LH Electric Brake Assy with 4 Bolt Backing Plate for Dexter Axles More Info

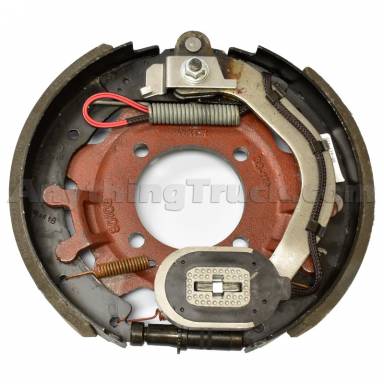

12-1/4" x 2-1/2" 7.2K RH Electric Brake Assy with 4 Bolt Backing Plate for Dexter Axles 23429 12-1/4" x 2-1/2" 7.2K RH Electric Brake Assy with 4 Bolt Backing Plate for Dexter Axles More Info


12-1/4" x 3-3/8" Electric Brake Assemblies
with 4 Bolt Cast Backing Plate for Dexter Trailer Axles

These are replacement brake assemblies for Dexter 8K trailer axles with 12.25" x 3.375" electric brakes. These brake assemblies have the cast backing plate with 4 mounting holes and auto adjusting brakes.
These brake assemblies replace Dexter part numbers: K23-434-00 and K23-435-00.

  Part
Number
Description
12-1/4" x 3-3/8" 8K FSA LH Electric Brake Assy with 4-Bolt Backing Plate for Dexter Axles 23434 12-1/4" x 3-3/8" 8K FSA LH Electric Brake Assy with 4-Bolt Backing Plate for Dexter Axles More Info

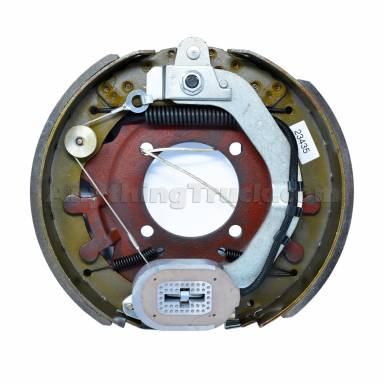

12-1/4" x 3-3/8" 8K FSA RH Electric Brake Assy with 4-Bolt Backing Plate for Dexter Axles 23435 12-1/4" x 3-3/8" 8K FSA RH Electric Brake Assy with 4-Bolt Backing Plate for Dexter Axles More Info


12-1/4" x 3-3/8" Electric Brake Assemblies
with 5 Bolt Cast Backing Plate for Imported Trailer Axles

These are replacement brake assemblies for imported trailer axles with 12.25" x 3.375" electric brakes. This electric brake assembly is NOT used on Dexter or Kelsey Hayes axles. Note that it has a 5-bolt mount. Dexter doesn't use a 5-bolt mount. Hayes uses a 5-bolt mount, but their brake shoes are 3.5" wide.

These brakes are found on trailers with imported axles and are hard to find. So far, we know trailers made by Quality Trailer, H and H Trailer, J and J Trailer, and Lippert Trailer have been found to use this brake assembly. We're sure there are others and will add them to the list as we find them.

  Part
Number
Description

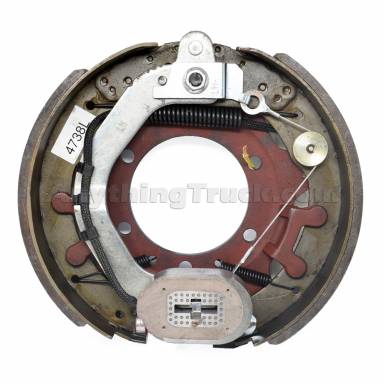

12-1/4" x 3-3/8" LH Electric Brake Assy with 5 Mounting Hole Cast Backing Plate (Doesn't Fit Dexter) 4738L 12-1/4" x 3-3/8" LH Electric Brake Assy with 5 Mounting Hole Cast Backing Plate (Doesn't Fit Dexter) More Info
12-1/4" x 3-3/8" RH Electric Brake Assy with 5 Mounting Hole Cast Backing Plate (Doesn't Fit Dexter) 4738R 12-1/4" x 3-3/8" RH Electric Brake Assy with 5 Mounting Hole Cast Backing Plate (Doesn't Fit Dexter) More Info


12-1/4" x 3-3/8" Electric Brake Assemblies
with 7 Bolt Cast Backing Plate for Dexter Trailer Axles

These are replacement brake assemblies for Dexter 9K-10K trailer axles with 12.25" x 3.375" electric brakes. These brake assemblies have the cast backing plate with 7 mounting holes and auto adjusting brakes.
These brake assemblies replace Dexter part numbers: K23-450-00 and K23-451-00.

  Part
Number
Description
12-1/4" x 3-3/8" 9K-10K FSA LH Electric Brake Assy with 7-Bolt Backing Plate for Dexter Axles 23450 12-1/4" x 3-3/8" 9K-10K FSA LH Electric Brake Assy with 7-Bolt Backing Plate for Dexter Axles More Info
{ Products.d.Name } 23451 12-1/4" x 3-3/8" 9K-10K FSA RH Electric Brake Assy with 7-Bolt Backing Plate for Dexter Axles More Info


12-1/4" x 3-1/2" Electric Brake Assemblies
with 5 Bolt Cast Backing Plate for Hayes Trailer Axles

These are replacement brake assemblies for Hayes trailer axles with 12.25" x 3.50" electric brakes. These brake assemblies have the cast backing plate with 5 mounting holes and auto adjusting brakes. These brake assemblies are NOT used on Dexter trailer axles.

  Part
Number
Description
12-1/4" x 3-1/2" LH Electric Brake Assy with 5 Mounting Stud Cast Backing Plat - Replaces AL-KO K5682552 12-1/4" x 3-1/2" LH Electric Brake Assy with 5 Mounting Stud Cast Backing Plat - Replaces AL-KO More Info
12-1/4" x 3-1/2" RH Electric Brake Assy with 5 Mounting Stud Cast Backing Plat - Replaces AL-KO K5682551 12-1/4" x 3-1/2" RH Electric Brake Assy with 5 Mounting Stud Cast Backing Plat - Replaces AL-KO More Info


12-1/4" x 4" Electric Brake Assemblies
with 7 Bolt Cast Backing Plate for Dexter Trailer Axles

These are replacement brake assemblies for Dexter 10K trailer axles with 12.25" x 4.0" electric brakes. These brake assemblies have the cast backing plate with 7 mounting holes and auto adjusting brakes.
These brake assemblies replace Dexter part numbers: K23-438-00 and K23-439-00.

  Part
Number
Description
12-1/4" x 4" 10K HD FSA LH Electric Brake Assy with 7-Bolt Backing Plate for Dexter Axles 23438 12-1/4" x 4" 10K HD FSA LH Electric Brake Assy with 7-Bolt Backing Plate for Dexter Axles More Info
12-1/4" x 4" 10K HD FSA RH Electric Brake Assy with 7-Bolt Backing Plate for Dexter Axles 23439 12-1/4" x 4" 10K HD FSA RH Electric Brake Assy with 7-Bolt Backing Plate for Dexter Axles More Info


12-1/4" x 5" Electric Brake Assemblies
with 7 Bolt Cast Backing Plate for Dexter Trailer Axles

These are replacement brake assemblies for Dexter 15K trailer axles with 12.25" x 5.0" electric brakes. These brake assemblies have the cast backing plate with 7 mounting holes and auto adjusting brakes.
These brake assemblies replace Dexter part numbers: K23-446-00 and K23-447-00.

  Part
Number
Description
12-1/4" x 5" 15K FSA LH Electric Brake Assy with 7-Bolt Cast Backing Plate for Dexter Axles 23446 12-1/4" x 5" 15K FSA LH Electric Brake Assy with 7-Bolt Cast Backing Plate for Dexter Axles More Info
12-1/4" x 5" 15K FSA RH Electric Brake Assy with 7-Bolt Cast Backing Plate for Dexter Axles 23447 12-1/4" x 5" 15K FSA RH Electric Brake Assy with 7-Bolt Cast Backing Plate for Dexter Axles More Info
