12K Dexter Low Profile Hub Group
8 Studs on 6.50" Bolt Circle

Dexter 12K Low-Profile Axle Parts Breakdown
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks
1 N/A Axle Spindle 1 N/A

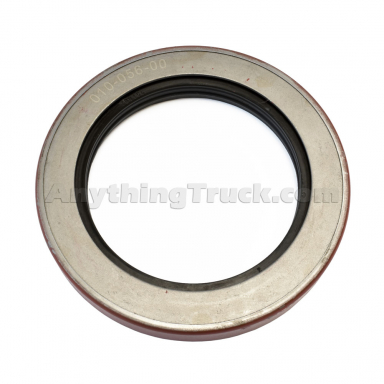

2 220-1056 Wheel Seal 1 010-056-00
3 760-3984 Inner Bearing Cone 1 031-020-02
4 760-3920 Inner Bearing Cup 1 031-020-01 Included with 220-82168 hub

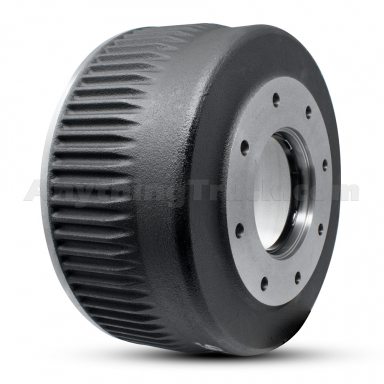

5 220-9285 Brake Drum 1 009-028-05 12-1/4"x5" brake drum with ABS

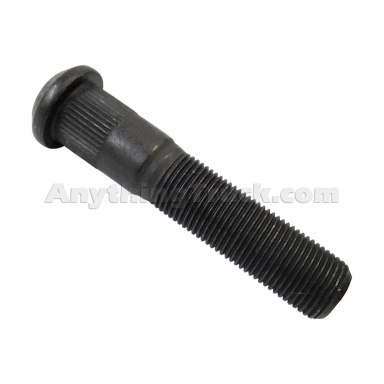

6 220-7115 Wheel Stud 8 007-115-00 Included with 220-82168 hub

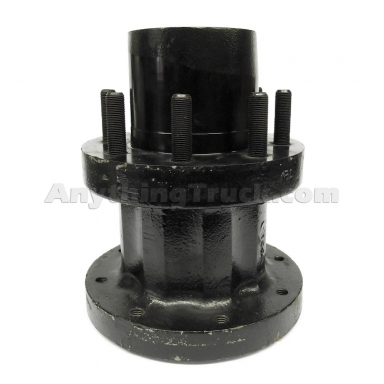

7 220-82168 Hub Assembly 1 008-216-08 Includes studs and bearing races
8 760-28622 Outer Bearing Cup 1 031-021-01 Included with 220-82168 hub
9 760-28682 Outer Bearing Cone 1 031-021-02

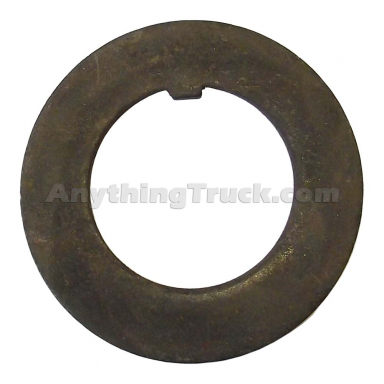

10 220-560 Spindle Washer 1 005-060-00

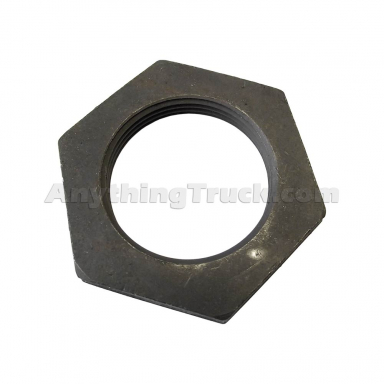

11 220-684 Axle Nut 2 006-084-00
12 220-559 Tang Washer 1 005-059-00
13 220-1050 Hub Cap O-Ring 1 010-050-00

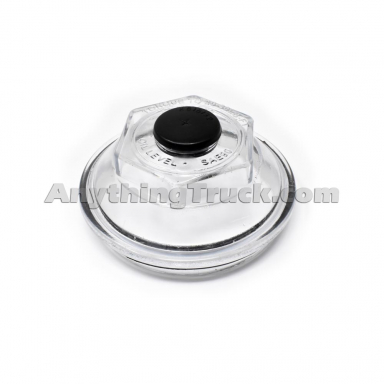

14 220-7139 Hub Cap Assy 1 K71-148-00
021-036-00
Includes O-ring and plug
15 220-4632 Hub Cap Plug 1 046-032-00
16 130-M248 Wheel Nut 8 006-109-00
16 220-33521 Wheel Clamp Ring 1 033-052-01

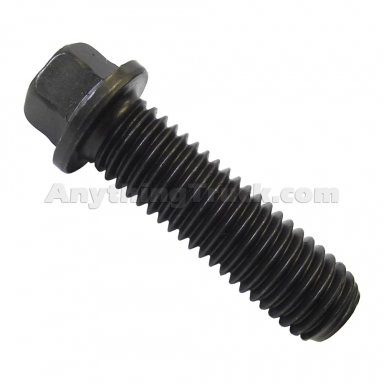

21 220-7244 Drum Bolt 8 007-244-00
  220-23446 LH Electric Brake Assy 1 K23-446-00 12-1/4"x5", 7-Bolt, cast iron backing plate
  220-23447 RH Electric Brake Assy 1 K23-447-00 12-1/4"x5", 7-Bolt, cast iron backing plate
