Dexter 8K Disc Brake
8 Studs on 6.50" Bolt Circle

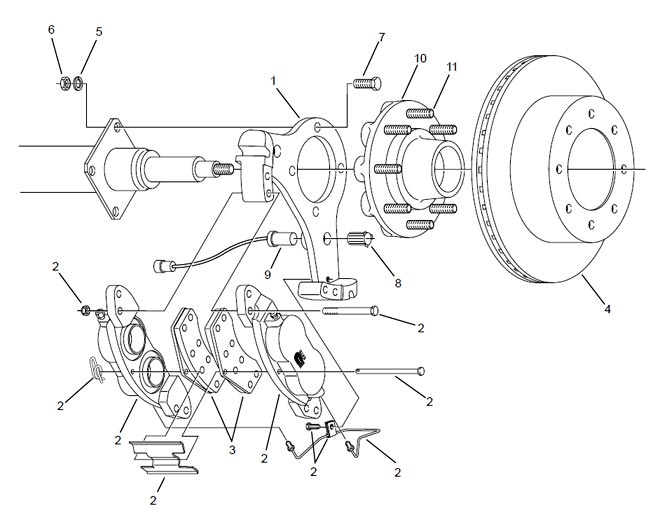

Dexter 8K Disc Brake Axle Parts Breakdown
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks

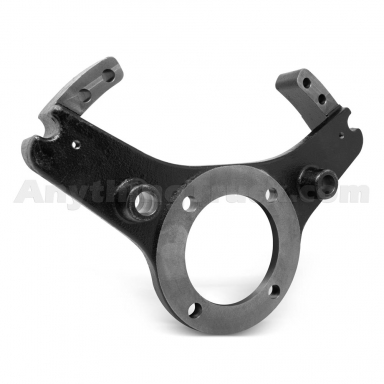

1a 090-003-01 Anchor Yoke
with Tapered Bearings
1 090-003-01

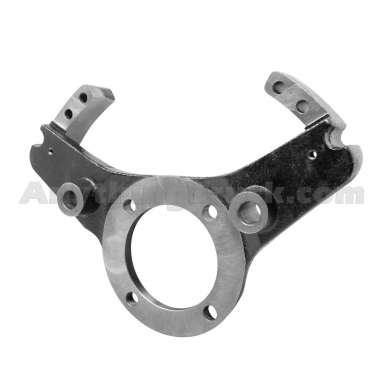

1b 090-007-01 Anchor Yoke
with 50mm Nev-R-Lube Bearings
1 090-003-01
2 K71-630-00 Caliper Assy LH/RH 1 K71-630-00

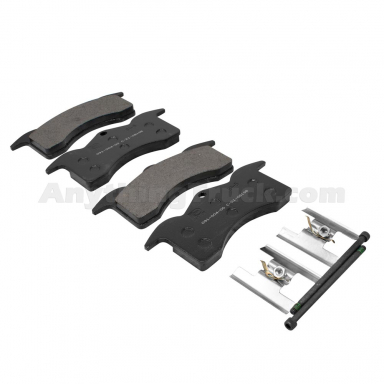

3 K71-629-00 Brake Pad Kit (Services Two Calipers) 1 K71-629-00

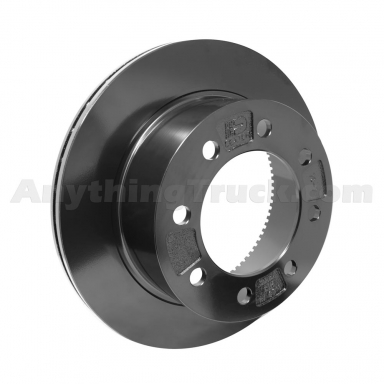

4 K71-631-00 Rotor 1 K71-631-00
5 005-058-00 1/2" Lock Washer 4 005-058-00
6 006-129-01 1/2" Hex Nut 4 006-129-01
7 007-097-00 1/2" Brake Mounting Bolt 4 007-097-00

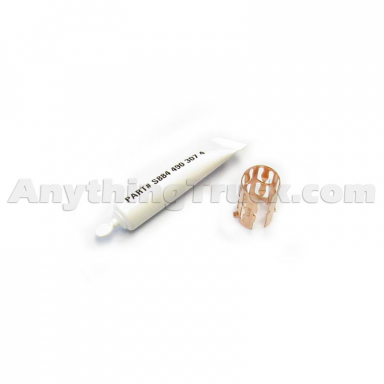

8 097-002-00 ABS Sensor Retaining Clip 1 097-002-00
9 AL1027196 ABS Sensor (Straight) 1 097-004-00

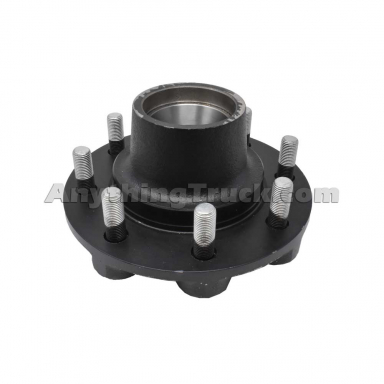

10 008-399-05 Hub with Tapered Bearings
Grease, 9/16" Studs, 8 on 6-1/2"
1 008-399-05

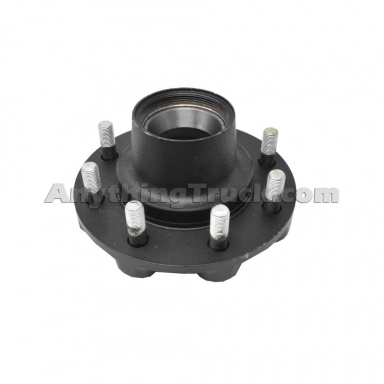

008-399-06 Hub with Tapered Bearings
Oil, 9/16" Studs, 8 on 6-1/2"
1 008-399-06

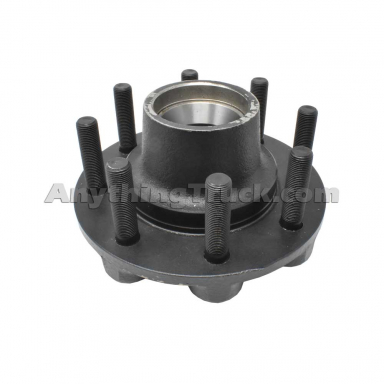

008-399-07 Hub with Tapered Bearings
Grease, 5/8" Studs, 8 on 6-1/2"
1 008-399-07
008-399-08 Hub with Tapered Bearings
Oil, 5/8" Studs, 8 on 6-1/2"
1 008-399-08
008-402-80 Hub with 50mm Nev-R-Lube
9/16" Studs, 8 on 6-1/2"
1 008-402-80

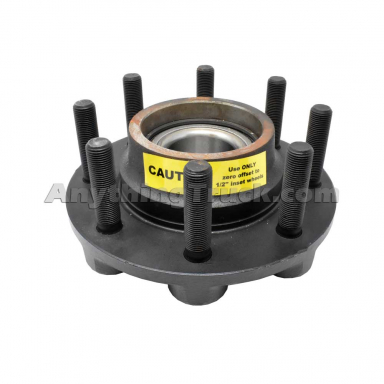

008-402-81 Hub with 50mm Nev-R-Lube
5/8" Studs, 8 on 6-1/2"
1 008-402-81
11 007-257-00 9/16"-18 x 2-1/2" Wheel Stud 8 007-257-00
7115 5/8"-18 x 3-5/16" Wheel Stud 8 007-115-00
