Navistar / International
4200 / 4300 Transtar Conventional

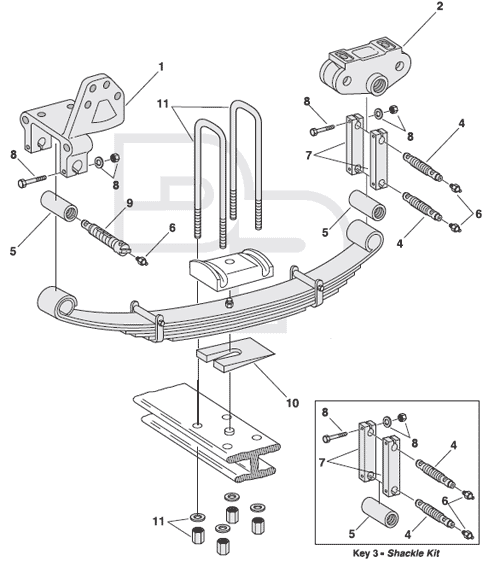

Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Front LH 2 411752C5
1 N/A Hanger, Front RH 2 411753C5
2 338721 Hanger, Threaded 2 778002C1 All Except 3406 Cat & 8V92 DDA Engine
2 N/A Hanger, Shackle, Threaded 2 795969C1 With 3406 Cat & 8V92 DDA Engine
3 330128 Shackle Kit, Threaded 2   Includes two 330109, two 327305, and one TB26
4 327434 Spring Pin, Threaded
1-3/8"-6 OD x 7-3/8" L 		2 688952R1
5 TB26 Bushing,
1-3/4" ID
4" L
1-3/8"-6 Thread 		6 688951R1
6 334475 Fitting,
Straight Grease Zerk
1/8"-27 NPT 		6 1613B
7 330109 Side Bar
6-3/4" L 4-1/4" C to C
1" Thick
1-1/16" Pin Holes 		4 400091C2
8 334550 Bolt Assembly
1/2"-20 x 3" L 		12   Includes 334538 Bolt and Hardware
9 327297 Spring Pin, Threaded
1-3/8"-6 OD x 7-3/8" L 		2 688953R1 With 1/2" Lock Pin Slots
10   Aluminum Wedge AR   &bnsp;
11 361216 U-Bolt Kit;
Special Bend, Grade 8 		4 465916C1 3/4" x 4" x 10", International Semi-Round Bend, Includes nuts and washers
11 361278 U-Bolt Kit;
Special Bend, Grade 8 		4 465921C1 7/8" x 4" x 12-1/8", FR Bend, Includes nuts and washers
