Navistar / International
2000/4000 Series 10K-14K Axles
(From 1989)

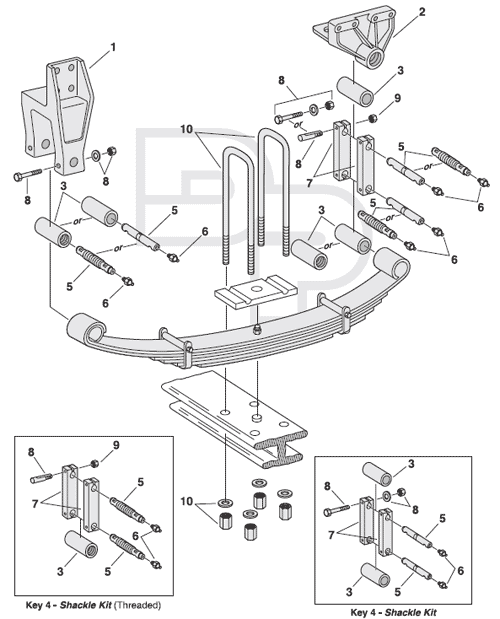

Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 3381221 Hanger 2 1661860C1 With Reinforced Frame
1 3381222 Hanger 2 1661859C1C1 W/O Reinforced Frame
2 3381218 Hanger Assembly 2 1664263C1
1664262C1		 W/O Frame Reinforcement
2 3381219 Hanger Assembly 2 1664265C1
1664264C1		 W/Full "C" Reinforced Frame

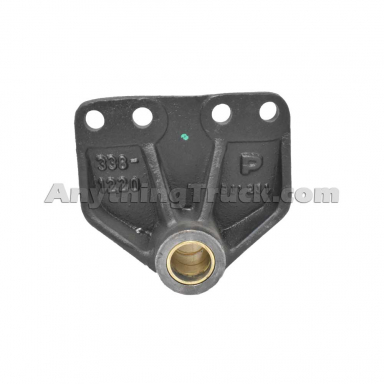

2 3381220 Hanger Assembly 2 1664267C1
1664266C1		 W/Inverted "L" Reinforced Frame
2 N/A Hanger, Shackle
with 322100 Bushing		 2 1664269C1
1664268C1		 W/Inverted "L" Reinforced Frame or 5/8" Spring Offset w/o Reinforcement
2 N/A Hanger, Shackle
with 322100 Bushing		 2 1664271C1
1664270C1		 W/Full "C" Reinforced Frame
2 338841 Hanger, Shackle;
Threaded 		2 1654348C1 Use 327482 Pin, 330188 Shackle Kit

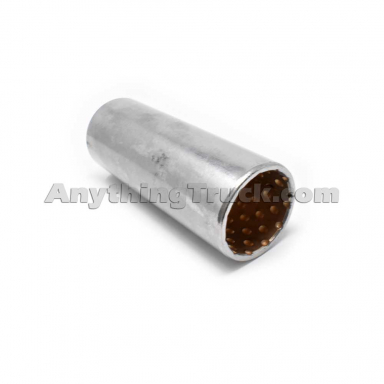

4 322100 Bushing, Bi-Metal
1-1/4" ID x 1-1/2" OD
4" L 		6 1698113C1
4 322141 Bushing, with Seals 6   Upgrade for 322100

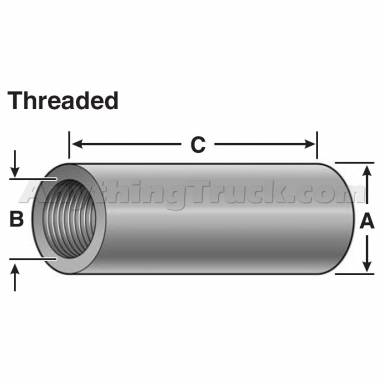

4 TB26 Bushing,
1-3/4" OD
4" L
1-3/8"-6 Thread 		6 688951R1
4 330188 Shackle Kit 2   Includes two 330157, two 327482, four 334446, and two TB26
4 330165 Shackle Kit 2   Includes two 330149, two 327480

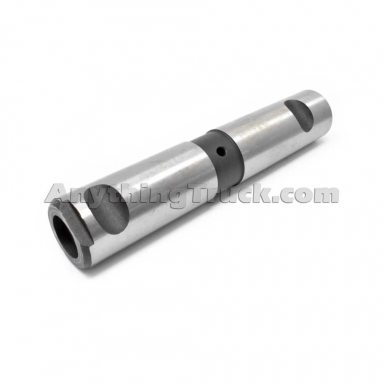

5 327480 Spring Pin
1-1/4" OD x 6-3/4" L
5" C to C 		2 1661976C3

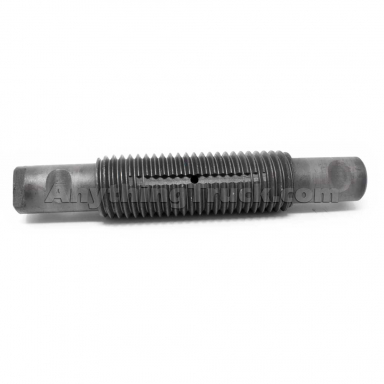

5 327443 Spring Pin, Threaded
1-3/8"-6 x 7.35" L 		2 507203C1
5 327482 Spring Pin, Threaded
1-3/8"-6 x 7-5/16" L 		2 1654691C1

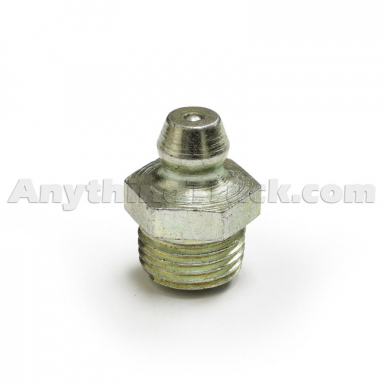

6 334475 Fitting,
Straight Grease Zerk
1/8"-27 NPT 		6 1613B
7 330157 Side Bar
5-1/4" L 3-1/4" C to C
13/16" Thick
1" Pin Holes 		4 1654690C1 Use with Threaded Spring Pins
7 330149 Side Bar
6" L 3-1/2" C to C
13/16" Thick
1-1/4" Pin Holes 		4 1664223C1 Used with 1-1/4" Spring Pins
8 334550 Bolt Assembly
1/2"-20 x 3" L 		12   Use with 327480 & 327443
8 334446 Pin, Lock 8 441246C1 Use with 327482
9 334536 Nut, 3/8"-16 8/12 9413979 Use with 334446
10 361216 U-Bolt Kit;
Special Bend, Grade 8 		4 465916C1 3/4" x 4" x 10", International Semi-Round Bend, Includes nuts and washers
