Navistar / International
9200 / 9400 Conventional
9600 / 9700 Cab Over

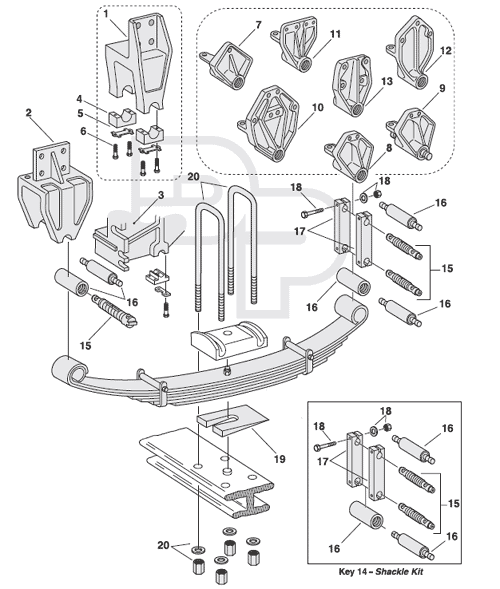

Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Cast 2 1654353C1 9600SBA, 9700 LoPro; Use with 327443
2 N/A Hanger, Front 2 1658592C3 9300/9400SBA
2 N/A Hanger, Front 2 1653736C3 9600/9700/9700SBA
3 N/A Bracket, Front 2 Various 9300/9500/9600/9700SBA
4 3381840 Cap, Hanger 4 507387C1
5 3381590 Lock Tab 4 503956C1
6 3341591 Cap Screw
1/2"-13 x 2-1/4" 		8 24865R1

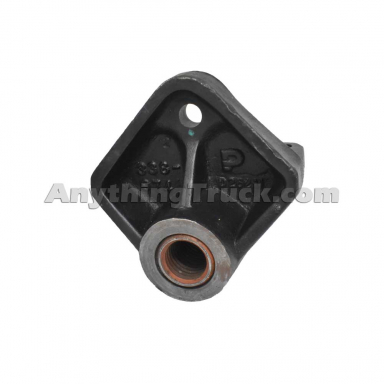

7 338974 Hanger, Threaded 2 507198C3 9200,9300,9400,9600 w/SFA or SBA, 9700SFA & Drop Frame
8 338975 Hanger, Threaded 2 507197C1 9600, 9700 w/SFA & Straight Frame

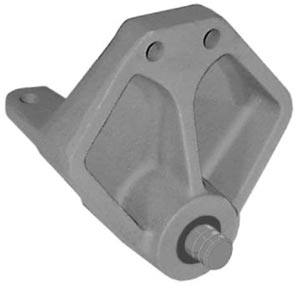

9 338972 Hanger, Shackle 2 503950C91
503949C1		 Straight Frame; Before 1991; Discontinued; Use 338975
10 3381239 Hanger, Threaded 2 1658157C1 9200/9300/9400; w/SBA or SFA & Straight Frame
11 338841 Hanger, Threaded 2 1654348Ca 9700 LoPro
12 3381198 Hanger, Threaded 2 1653734C1 9700/9700SVA; w/Straight Frame
13 3381199 Hanger, Threaded 2 1653735C1 9700/9700SVA; w/Drop Frame
14 330150 Shackle Kit,
Integral Rubber Bushing 		2   Includes two 3310119, two RB161, and Hardware
14 330153 Shackle Kit,
Threaded Pin 		2   Includes two 330108, two 327443, one TB26, and Hardware
14 330193 Shackle Kit,
Threaded Pin
3-1/4" Side Bar 		2   Includes two 330160, two 327443, one TB26, and Hardware
15 327443 Spring Pin, Threaded
1-3/8"-6 OD x 7.35" L 		2 507203C1
16 RB161 Bushing,
1" Pin OD x 1-3/4" OD
4" L 		6
16 TB26 Bushing,
1-3/4" OD
4" L
1-3/8"-6 Thread 		6 688951R1
17 330160 Side Bar
5-3/4" L 3-1/4" C to C
1-1/8" Thick
1" Pin Holes 		4 1654269C1
17 330108 Side Bar,
6-3/8" L 4" C to C
1-1/4" Thick
1" Pin Holes 		4 546036C1
507204C3
17 330119 Side Bar,
6-3/4" L 4-7/16" C to C
1-1/16" Thick
1" Pin Holes 		4 503959C1
18 334550 Bolt Assembly
1/2"-20 x 3" L 		8/12   Includes 334538 Bolt and Hardware
18 334551 Bolt Assembly
3/8"-24 x 2-3/4" L 		4   Use with 330119 & RB161
19   Aluminum Wedge AR   &bnsp;
20 361216 U-Bolt Kit;
Special Bend, Grade 8 		4 465916C1 3/4" x 4" x 10", International Semi-Round Bend, Includes nuts and washers
20 361278 U-Bolt Kit;
Special Bend, Grade 8 		4 465921C1 7/8" x 4" x 12-1/8", FR Bend, Includes nuts and washers
20 361167 U-Bolt Kit;
Special Bend, Grade 8 		4 03-3134-151 1" x 4" x 15-7/8", PR Bend, Includes nuts and washers
