Navistar/International
1600-1800 Loadstar Conventional

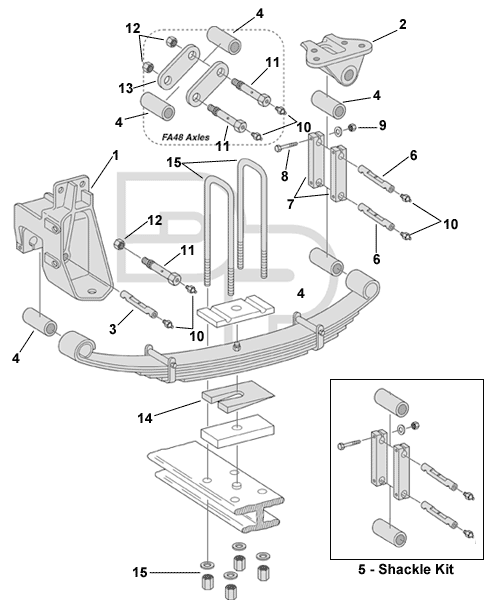

Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, LH 1 277178C3 Use 327258 Spring Pin
1 N/A Hanger, RH 1 277179C3 Use 327258 Spring Pin
2 338828 Hanger, Shackle 2 874281R1
3 327258 Spring Pin
7/8" OD x 5" L
3.91" C to C 		2 64147HC Front Spring Pin
4 JFE Bushing
3/4" ID x 1" OD
2-1/2" L 		6 865943R1
4 LHGBM Bushing, Bi-Metal
7/8" ID x 1-1/8" OD
3" L 		6 866090R1
236832R1
5 330129 Shackle Kit, Rear 2   Includes two 327240, two 330112, and hardware
6 327240 Spring Pin
7/8" OD x 4-11/16" L
3-13/16" C to C 		4 76771R1 Shackle Pin
7 330112 Side Bar
4-3/4" L 3" C to C
13/16" Thick
7/8" Pin 		4 76772R1 Used with 327240
8 334534 Bolt
3/8"-24 x 2-1/4" L 		8 24621H Used with 327240
9 SLN100 Lock Nut, 3/8"-24 8 9413979
10 334475 Fitting,
Straight Grease Zerk
1/8"-27 NPT 		6 1613B
11 327302 Spring Pin
7/8" OD x 5-1/4" L
3/4"-16 Thread 		2 878191R1 Front Pin Only; FA48 Axle
11 N/A Spring Pin
3/4" OD x 4-1/16" L
5/8"-18 Thread 		4 874959R1 Shackle Pin; FA48 Axle
12 SLN105 Lock Nut, 3/4"-16 2 102309R1 Use with 327302
12 SLN104 Lock Nut, 5/8"-18 4   Use with 327301
13 N/A Side Bar
4-1/8" L 2-3/4" C to C
5/16" Thick
3/4" Pin Holes 		2 874957R1 Used with 327301; FA48 Axle
13 N/A Side Bar
4-1/8" L 2-3/4" C to C
5/16" Thick
5/8" Pin Holes 		2 874958R1 Used with 327301; FA48 Axle
14   Aluminum Wedge AR
15 361370 U-Bolt Kit;
Square Bend, Grade 8 		4 893993R21 5/8" x 3" x 8-3/8", Square Bend, Includes nuts and washers
15 361290 U-Bolt Kit;
Square Bend, Grade 8 		4 465905C1 5/8" x 3" x 12-3/8", Square Bend, Includes nuts and washers
15 361292 U-Bolt Kit;
Square Bend, Grade 8 		4 465907C1 3/4" x 3" x 12-3/8", Square Bend, Includes nuts and washers
