Navistar / International
CO4070A/B Transtar Cab Over

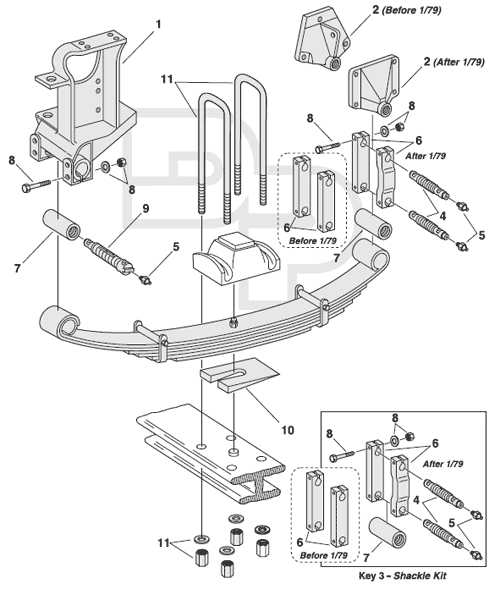

Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Front 2 Various
2 338787 Hanger, Threaded 2 449193C2 Before 1/3/79
2 338788 Hanger, Threaded 2 493003C2 After 1/3/79
3 330128 Shackle Kit, Threaded 2   Before 1/3/79; Includes two 330109, two 327305, and one TB26
3 330147 Shackle Kit, Offset 2   After 1/3/79; Includes one 330109, one 330113, two 327305, and two TB26
4 327434 Spring Pin, Threaded
1-3/8"-6 OD x 7-3/8" L 		2 688952R1
5 334475 Fitting,
Straight Grease Zerk
1/8"-27 NPT 		6 1613B
6 330109 Side Bar
6-3/4" L 4-1/4" C to C
1" Thick
1-1/16" Pin Holes 		2/4 400091C2
6 330113 Side Bar, Offset 2 525331C1 After 1/3/79
7 TB26 Bushing,
1-3/4" ID
4" L
1-3/8"-6 Thread 		6 688951R1
8 334550 Bolt Assembly
1/2"-20 x 3" L 		8/12   Includes 334538 Bolt and Hardware

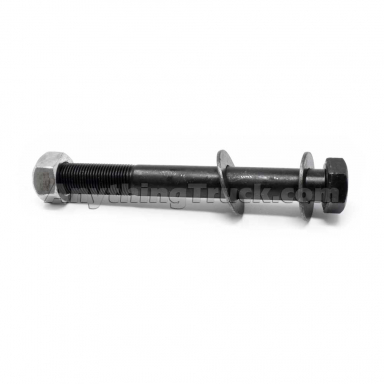

8 334754 Bolt Assembly
5/8"-18 x 5-1/2" L 		4   Use with 327488 Spring Pin Only

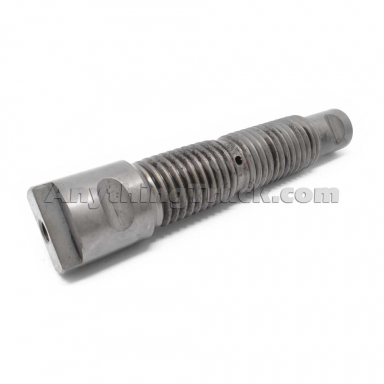

9 327297 Spring Pin, Threaded
1-3/8"-6 OD x 7-3/8" L 		2 688953R1 After 1/3/79; With 1/2" Lock Pin Slots
9 327488 Spring Pin, Threaded
1-3/8"-6 OD x 7-3/8" L 		2 455656C1 Before 1/3/79; With 5/8" Lock Pin Slots
10   Aluminum Wedge AR   &bnsp;
11 361216 U-Bolt Kit;
Special Bend, Grade 8 		4 465916C1 3/4" x 4" x 10", International Semi-Round Bend, Includes nuts and washers
11 361278 U-Bolt Kit;
Special Bend, Grade 8 		4 465921C1 7/8" x 4" x 12-1/8", FR Bend, Includes nuts and washers
