Navistar / International
8100 / 8200 / 8300 Conventional

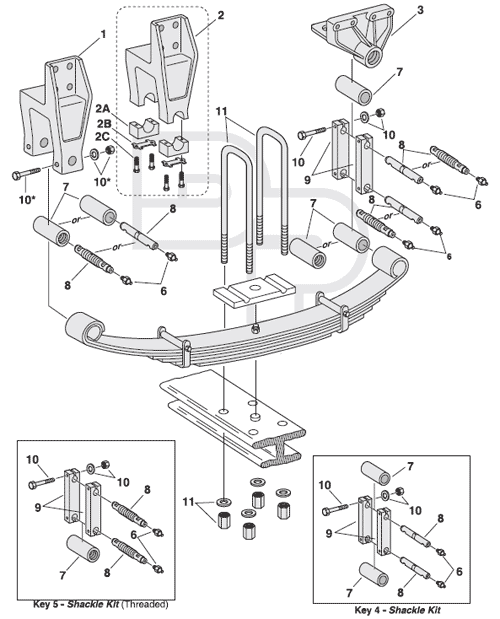

Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Front 2 1664369C1 8100; Use 327481 Spring Pin
1 N/A Hanger, Front 2 1664370C1 8100; Use 327480
2 N/A Hanger, Front 2 1654351C1 8100 Prior to 12/19/93; Use 327443 Spring Pin
2 3381839 Hanger, Cast 2 1654353C1 8100 After 12/19/93; 8200/8300; Use 327443 Spring Pin
2 3381840 Cap, Hanger 4 507387C1
2 3381590 Lock Tab 4 503956C1
2 3341591 Cap Screw
1/2"-13 x 2-1/4" 		8 24865R1
3 3381217 Hanger, Threaded 2 1664434C1/2 8100; Use 327443 Spring Pin
3 N/A Hanger, Shackle, Threaded 2 1619608C1 8100 w/Inverted "L" Reinforcement

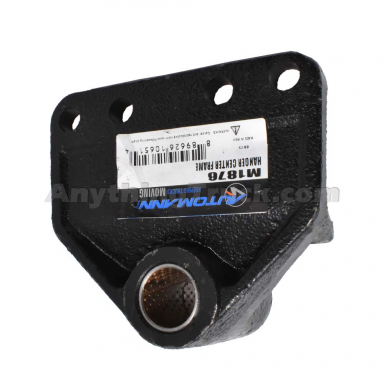

3 N/A Hanger, Shackle 2 1664271C1 8100 W/Full "C" Reinforced Frame; Use 327480 Spring Pin
3 N/A Hanger, Shackle 2 1664269C1 8100 W/Inverted "L" Reinforced Frame; Use 327480 Spring Pin
3 338841 Hanger, Shackle;
Threaded		 2 1654348C1 8200/8300; Use 327443 Spring Pin
3 N/A Hanger, Shackle;
Threaded		 2 1654350C1 8200/8300 With Inverted "L" Frame Reinforcement
4 330165 Shackle Kit 2   Includes two 330149, two 327480, and two RNKBM
5 330193 Shackle Kit,
Threaded Pins
3-1/4" Side Bars		 2   Includes two 330160, two 327443, and two TB26
6 334475 Fitting,
Straight Grease Zerk
1/8"-27 NPT		 6 1613B
7 322100 Bushing, Bi-Metal
1-1/4" ID x 1-1/2" OD
4" L 		6 44097C1
7 322141 Bushing, with Seals 6   Upgrade for RNKBM
7 TB26 Bushing,
1-3/4" ID
4" L
1-3/8"-6 Thread 		6 688951R1
8 327443 Spring Pin, Threaded
1-3/8"-6 OD x 7.35" L 		2 507203C1
8 327480 Spring Pin
1-1/4" OD x 6-3/4" L
5" C to C 		2 1661976C3
9 330160 Side Bar
5-3/4" L 3-1/4" C to C
1-1/8" Thick
1" Pin Holes 		4 1654269C1 8100/8200/8300 with Threaded Spring Pins
9 330149 Side Bar
6" L 3-1/2" C to C
1" Thick
1-1/4" Pin Holes 		4 1664223C1 8100 with 1-1/4" Spring Pins
10 334550 Bolt Assembly
1/2"-20 x 3" L 		12   Includes 334538 Bolt and Hardware
11 361216 U-Bolt Kit;
Special Bend, Grade 8		 4 465916C1 3/4" x 4" x 10", International Semi-Round Bend, Includes nuts and washers
