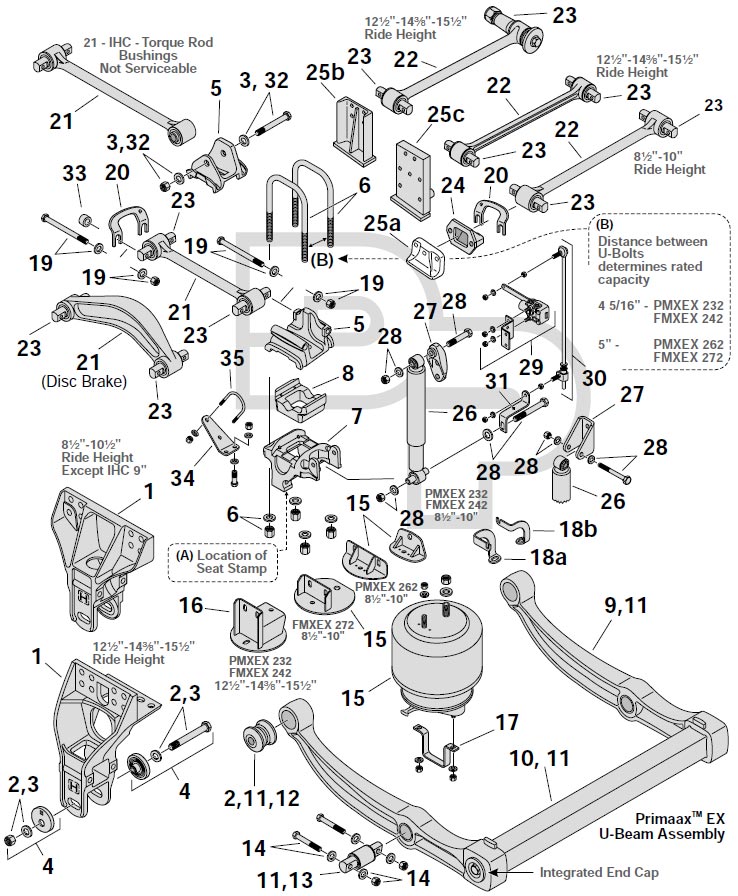

Hendrickson Primaax EX 232/462/692, 262/522/782
Firemaax EX 242/482, 272/542
Air Suspension Parts
Help Identify My Primaax or Firemaax Suspension
| Key No. |
Part Number |
Description | No. Req. |
OEM Number |
Remarks |
|---|---|---|---|---|---|
| 1 | 338-2237 | Hanger | 2 | 67706 | 8.5" - 10.5" Ride Height |
| Hanger | 2 | 67222 | 10" Ride Height, Mack & Volvo | ||
| Hanger, LH | 1 | 67299-1 | 12.5", 14.4", 15.5" Ride Height/ IH & Cat EX232, 13" Ride Height/ KW EX232/262T | ||
| Hanger, RH | 1 | 67299-2 | 12.5", 14.4", 15.5" Ride Height/ IH & Cat EX232, 13" Ride Height/ KW EX232/262T | ||
| 2 | 334-1698 | Pivot Bushing Service Kit | 2 | 60632-20, 60632-8 | Includes Collars, (1) Axle |
| 334-1698 | Pivot Bushing Service Kit | 2 | 60691-720 | Includes Collars, (1) Beam End, 1-1/4" Bolt | |

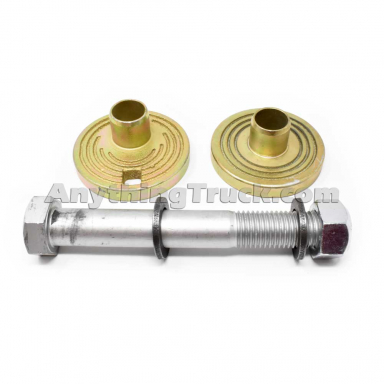

| 3 | MHS237 | Alignment Service Kit | 2 | 60632-19, 60632-6 | 1" Bolt, Includes Collars |
| Alignment Service Kit, Severe Service | 1 | 60632-15 | 1-1/4" Bolt | ||
| 4 | 334-1712 | Bolt Assembly 1"-8 x 7-1/2" Long |
2 | 60632-18, 60632-5 | |
| 5 | Bracket, Top Cap | 2 | |||
| 6 | 361-627 | U-Bolt Kit | 4 | 3/4" x 9" Long | |
| 361-661 | U-Bolt Kit | 4 | 3/4" x 10" Long | ||
| 361-662 | U-Bolt Kit | 4 | 3/4" x 11" Long | ||
| 361-663 | U-Bolt Kit | 4 | 3/4" x 12" Long | ||
| 7 | Bracket, Bottom Cap | 2 | |||
| 8 | Axle Spacer | 2 | |||
| 9 | Beam | 2 | Must order U-Beam Assembly | ||
| 10 | Cross Tube | 1 | Must order U-Beam Assembly | ||
| 11 | U-Beam Assembly | 1 | 67249-xxx | ||

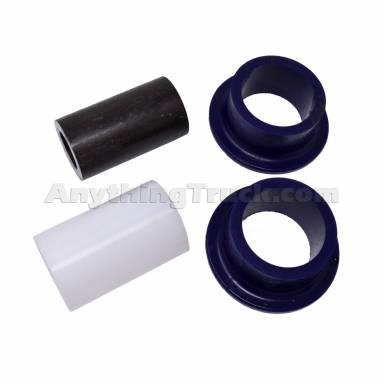

| 12 | TRB5031 | Pivot Bushing | 2 | 58648 | Use with MHS237, Key 3 |
| 321-523 | Pivot Bushing | 4 | 70425-1 | ||
| 13 | 321-388 | D-Pin Bushing | 2 | 60383 | Use w/ 3/4" Bolts |
| 321-512 | D-Pin Bushing | 2 | 65381 | Use w/ 7/8" Bolts | |
| 14 | 334-626 | Bolt Assy 3/4"-10 x 5" Long |
4 | 21867-36 | |
| 334-1117 | Bolt Assy 3/4"-16 x 5-1/2" Long |
4 | 21777-26 | ||
| 334-1701 | Bolt Assy 7/8"-14 x 5-1/2" Long |
4 | 30418-9 | ||
| Bolt Assy 7/8"-14 x 5" Long |
4 | 30418-11 | |||
| 15 | 280-9865 | Air Spring | 2 | 67043-2 | Primaax 8.5"-10.5" Ride Ht; KW EX232, 10" Ride Ht |
| 67392-002 | Air Spring | 2 | 67392-2 | Firemaax 8.5"-10.5" Ride Ht | |
| 67234-002 | Air Spring | 2 | 67234-2 | IH EX232, 9"-10.5" Ride Ht | |
| 67247-002 | Air Spring | 2 | 67247-2 | Primaax EX262, 8.5"-10.5" Ride Ht; KW EX262, 10" Ride Ht/ EX262S, 8.5" & 10" Ride Ht | |
| 68056-002 | Air Spring | 2 | 68056-2 | Firemaax EX272, 8.5"-10.5" Ride Ht; IH Primaax EX262, 9" Ride Ht; CAT 262S | |
| 67391-002 | Air Spring | 2 | 67391-2 | Primaax, 12.5", 14.4", 15.5" Ride Ht; KW EX232T | |
| 67044-002 | Air Spring | 2 | 67044-2 | KW EX262; 15.5" Ride Ht | |
| 67923-002 | Air Spring | 2 | 67923-2 | IH & CAP EX232T; 13" Ride Ht | |
| Air Spring | 2 | 68070-2 | Caterpillar & IH | ||
| 16 | Upper Air Spring Bracket | 2 | 65031-3 | 14.4" Ride Height | |
| Upper Air Spring Bracket | 2 | 65031-4 | 15.5" Ride Height | ||
| 17 | Lower Air Spring Bracket | 2 | 60911-2 | ||
| 18 | Air Spring Gusset | 1 | 59479-3 | (a) If equipped | |
| Air Spring Gusset | 1 | 59479-4 | (b) If equipped | ||
| 19 | Torque Rod Fastener Kit | 2 | 49176-32 | 5/8" x 8", One Rod | |
| Torque Rod Fastener Kit | 2 | 5/8" x 8", 3/4" x 6", One Rod | |||
| 20 | TS43442 | Shim, 1/16" Thick, 4-3/8" C/C | 49689 | ||
| 21 | Torque Rod Assy | 2 | |||
| 22 | Track Rod | 1 | 72000-xxxS | Ultra-Rod Plus, Specify Length, 321-500 Bushing | |
| Track Rod | 1 | 62250-xxx | Indiana Phoenix/Terex Advance, Specify Length, 321-223 & 321-361 Bushings | ||
| Track Rod | 1 | 62000-620 | Oshkosh; 321-223 Bushing | ||
| Track Rod | 1 | 67428-565 | KW EX262, 10" Ride Height | ||
| Track Rod | 1 | 72000-560C | KW EX262; 10" Ride Height; 262S 8.5" & 10"; 232/262T 15.5"; 321-500 Bushing | ||
| Track Rod | 1 | 62011-xxxN | IH EX232T, 13" Ride Height; Specify Length, 321-223 Bushing | ||
| 23 | 321-500 | Bushing, 4-3/8" C/C x 5/8" Bolts | 64400-2 | ||
| 321-223 | Bushing, 4-3/8" C/C x 5/8" Bolts | 47691 | |||
| 321-361 | Bushing, Taper Pin | 64809 | |||
| 321-366 | Bushing, 4-3/8" C/C x 3/4" Bolts | 69210 | EX262/272 Axle End | ||
| 24 | 338-181 | Track Rod Frame Bracket | 1 | 22186 | For 5/8" Bolts |
| 25 | Frame Mounted Axle Stop | 1 | 60593-1 | (a) EX232; 8.5" Ride Height | |
| Frame Mounted Axle Stop | 1 | 60593 | (a) Except EX232; 8.5" Ride Height | ||
| Frame Mounted Axle Stop | 1 | 64692-xxx | (b), (c); Specify Fore/Aft Axle & Make; 12.5", 14.4" & 15.5" Ride Height | ||
| Frame Mounted Axle Stop | 1 | 65570-1 | (c) IH & CAT 232EX; 13" Ride Height | ||
| Frame Mounted Axle Stop | 1 | 69580, 69581 | (d) KW EX232/262T; 15.5" Ride Height | ||
| 26 | 341-60657-4 | Shock Absorber | 2 | 60657-4 | |
| Shock Absorber | 2 | 60665-13, 60665-15 | EX262 Specify Drum or Disc Brake | ||
| 341-60657-3 | Shock Absorber | 2 | 60657-3 | KW EX232 10" Ride Ht; Except Triaxle; IH 9" & 10.5" | |
| 341-60657-5 | Shock Absorber | 6 | 60657-5 | KW EX232 10" Ride Ht; Triaxle | |
| M65504 | Shock Absorber | 4 | 60657-7 | Mack EX232/462/692 | |
| 27 | Upper Shock Frame Bracket | 2 | 67463-2 | Cast | |
| Upper Shock Frame Bracket | 2 | 59423-1 | Stamped | ||
| Upper Shock Frame Bracket | 2 | 67463-6 | Mack/Volvo | ||
| 28 | Shock Fastener Service Kit | 2 | 50754-30 | Primaax EX232 & Firemaax EX242; 4.25/6 | |
| Shock Fastener Service Kit | 2 | 50754-29 | Primaax EX262/262S & Firemaax EX272; 4.25/7 | ||
| Shock Fastener Service Kit | 2 | 50754-12 | KW EX232/262T; 15.5" Ride Ht 3.75/6 | ||

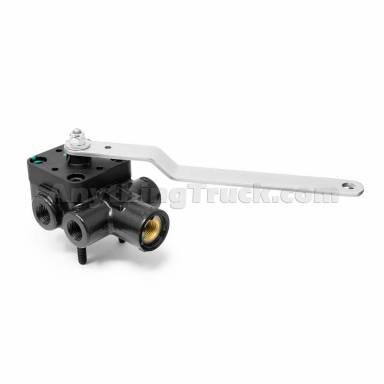

| 29 | 171H218OE | Height Control w/Dump | 1 | 57977 | |
| 30 | 4810025 | Linkage Assy | 1 | 3-5/8" - 19-5/8" Range | |
| 31 | HCV Linkage Bracket | 1 | 60921 | ||
| 32 | 334-1701 | Bolt Assembly 7/8"-14 x 5-1/2" Long |
2 | 58821-12 | Torque Rod Bolt Assy, Axle End IH |
| 33 | Torque Rod Spacer | 4 | 67045-xxx | IH 232EX; 9", 10.5"; Specify Spacer Thickness | |
| 34 | S-Cam Bracket | 4 | 64508-xxx | Check part number on component | |
| 35 | S-Cam U-Bolt | 4 | 64202 |
