    Comfort Air


    Hendrickson Comfort Air
    Air Suspension Parts

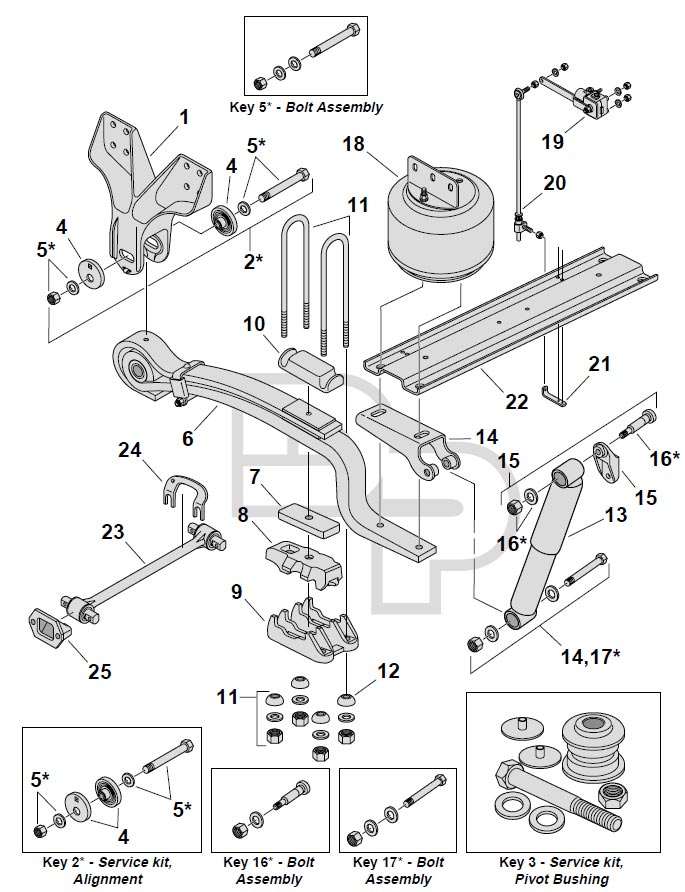

    Hendrickson Comfort Air Suspension Breakdown
    Key
    No.    		 Part
    Number    		 Description No.
    Req.    		 OEM
    Number    		 Remarks
    1 338-1930 Hanger 2 60784
    2 MHS87 Alignment Service Kit 1 60632-1 Services one axle
    NS TRB5031 Spring Pivot Bushing 2
    NS MHS89 Spring Wrapper Button 4 64817-000
    3 334-1711 Pivot Bushing Service Kit 2 60632-19, 60632-6 See Key 2 and the TRB5031 above
    4 334-1714 Concentric Alignment Collar 3 64633, 64097 See Key 2
    334-1715 Eccentric Alignment Collar 1 64632, 64096 See Key 2
    5 334-1712 Bolt Assembly
    1"-8 x 7-1/2" Long     		2 64107 See Key 2
    6 50-457 Spring 2 60779
    7   Spacer, 1-1/2" 2 48531-14
    8   Seat 2
    9   Bottom Plate 2
    10 338-1560 U-Bolt Saddle 2 56805 Except 15K & Hino
      U-Bolt Saddle 2 57724 15K
    11 EUB516116 U-Bolt Kit
    7/8" x 3" x 16-1/2" Round     		4 48718-2, 47417-1 Conical washers sold separately
    361-350 U-Bolt Kit
    7/8" x 3" x 15-1/2" Round     		4 48718-23, 47417-7 Includes conical washers (Hino 22mm)
    361-628 U-Bolt Kit
    3/4" x 3" x 16-1/2" Round     		4 48718-104, 49684-14 15K
    12 E3738 Conical Washer, 7/8" 8 48574
    WA58 Conical Washer, 3/4" 8 49947 15K
    13 85006 Shock Absorber 2 60998-3 All except Hino
    14 334-1713 Shock Absorber Bracket Assy 2 57356 All except Hino
    15   Shock Absorber Frame Bracket 2 57322-2 All except Hino
    16 M5051 Shock Absorber Bolt 2 50368 All except Hino (16mm)
    17 334-1117 Bolt Assembly
    3/4"-16 x 5-1/2" Long     		2 57356 All except Hino (20mm)
    18 60925-002 Air Spring 2 60925-2 Rear Engine
    AB1DK23I8816 Air Spring 2 60929-1 Front Engine
    19 171H218OE Height Control w/Dump 1 59013
    20 4810025 Linkage Assy 1   3-5/8" - 19-5/8" Range
    21 334-1717 HCV Bracket 1 56789 All except Hino & Rear Engine
    334-1718 HCV Bracket 1 58367 Rear Engine
    22   Cross Channel 1
    23   Track Rod 1 62000-xxx
    24 TS43442 Shim, 1/16" Thick, 4-3/8" C/C AR 49689
    25 338-181 Track Rod Frame Bracket 1 22186

    11 Items

    Number of Products to Show
    Sort Products By

    TRB5031 Quik-Align Pivot Bushing For Hendrickson Comfort Air, Primaax & Firemaax and Mack MaxAir
    TRB5031 Quik-Align Pivot Bushing For Hendrickson Comfort Air, Primaax & Firemaax and Mack MaxAir Part Number: 052-TRB5031 $33.40 Not Yet Rated

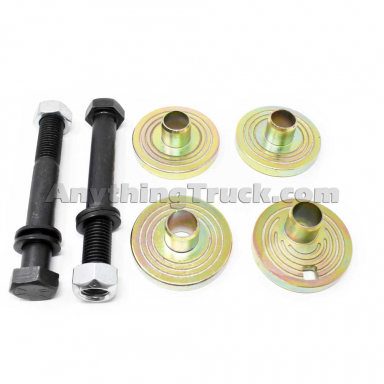

    MHS87 Pivot Bolt and Collar Kit, Hendrickson Comfort Air, Services One Axle
    MHS87 Pivot Bolt and Collar Kit, Hendrickson Comfort Air, Services One Axle Part Number: 052-MHS87 $116.00 Not Yet Rated
    MHS89 Spring Wrapper Button, Hendrickson Comfort Air
    MHS89 Spring Wrapper Button, Hendrickson Comfort Air Part Number: 052-MHS89 $7.86 Not Yet Rated

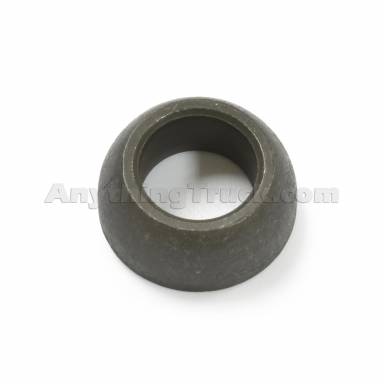

    Euclid E3738 Cone Washer for 7/8" U-Bolts
    Euclid E3738 Cone Washer for 7/8" U-Bolts Part Number: 270-E3738 $4.20 Not Yet Rated

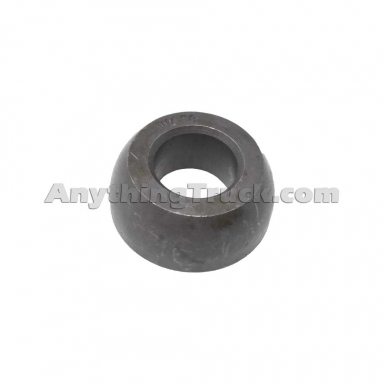

    WA58 Conical U-Bolt Washer, 3/4" U-Bolts, Replaces Hendrickson 49947-000
    WA58 Conical U-Bolt Washer, 3/4" U-Bolts, Replaces Hendrickson 49947-000 Part Number: 052-WA58 $2.29 Not Yet Rated
    Bulldog HD1215-0088 Heavy Duty Shock Absorber, Replaces Gabriel 85006 & Monroe 65111
    Bulldog HD1215-0088 Heavy Duty Shock Absorber, Replaces Gabriel 85006 & Monroe 65111 Part Number: 112-HD12150088 $81.24 Not Yet Rated

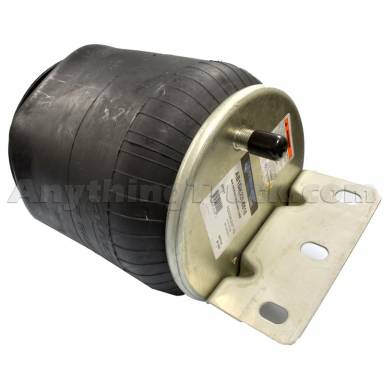

    AB1DK23I-8816 Air Spring, Replaces Firestone W01-358-8816 & Bluebird 58600
    AB1DK23I-8816 Air Spring, Replaces Firestone W01-358-8816 & Bluebird 58600 Part Number: 052-AB1DK23I8816 $209.38 Not Yet Rated
    HEN057977-000 Hendrickson Height Control Valve with Integral Dump Valve, Use Only On Trucks
    HEN057977-000 Hendrickson Height Control Valve with Integral Dump Valve, Use Only On Trucks Part Number: 052-HEN057977000 $202.18 Not Yet Rated
    PTP 48100225 SRK168 Linkage Kit for Suspension Leveling Valves
    PTP 48100225 SRK168 Linkage Kit for Suspension Leveling Valves Part Number: 070-48100225 $22.67 Not Yet Rated
    Northstar 43-442 Torque Arm Alignment Shim, 1/16" Thick, 4-3/8" C to C
    Northstar 43-442 Torque Arm Alignment Shim, 1/16" Thick, 4-3/8" C to C Part Number: 535-TS43442 $5.48 Not Yet Rated
    PTP U-Bolt Assembly with Nuts and Washers, 7/8" x 3" x 16" Round Bend
    PTP U-Bolt Assembly with Nuts and Washers, 7/8" x 3" x 16" Round Bend Part Number: 270-EUB516116 $19.09 Not Yet Rated
