Maxair

Hendrickson Maxair
(Mack Twisted Sister) Suspension Parts

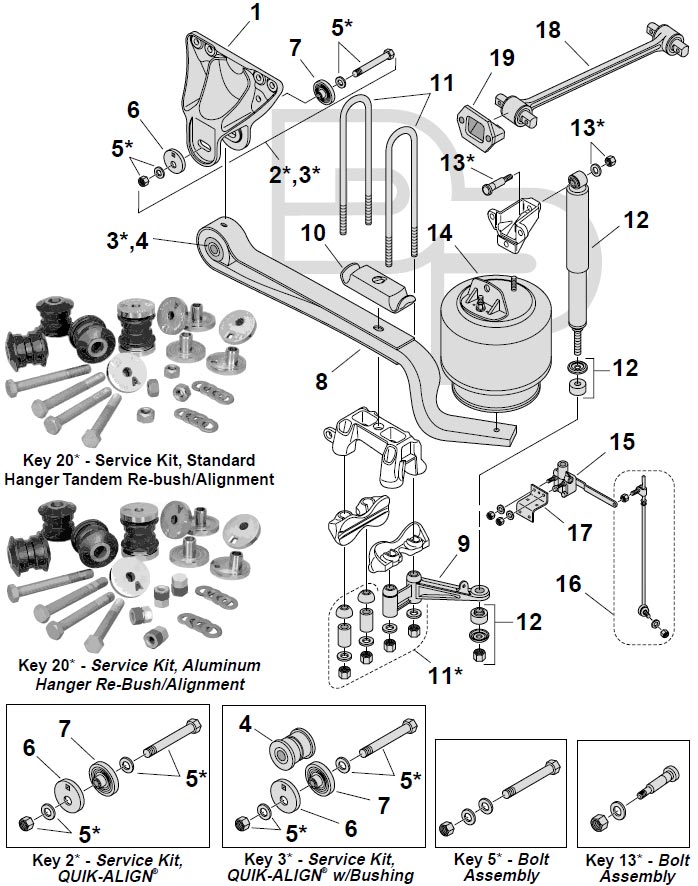

Key No.	Part Number	Description	No. Req.	OEM Number	Remarks
1	338-1924	Hanger	4	58772-1	Replaces Aluminum Hanger

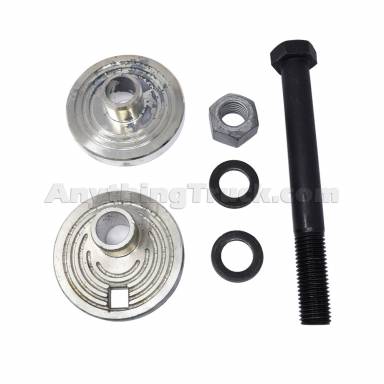

2	MHS301	QUIK-ALIGN Service Kit	2		Includes Collars & Hardware
3	334-1690	QUIK-ALIGN Service Kit w/Bushing	2	60682-1	Includes Collars, Hardware, & Pivot Bushing
4	TRB5031	Pivot Bushing	4	58648	MAXAIR® & COMFORT AIR®
5	See Key 2	Quik-Align Pivot Bolt Assy	4
6	See Key 2	Alignment Collar, Eccentric	2	60662, 16QK39M
7	See Key 2	Alignment Collar, Concentric	6	60661, 16QK38M
8	50-433	Main Spring, LH	2	58691, 4QK4176M
9	50-435	Main Spring, RH	2	58768, 4QK4175M
10	338-1925	U-Bolt Saddle	4	58775-2
11	362-108	U-Bolt Service Kit	4		Includes U-Bolts, Washers, Spacers, Etc for One Axle End

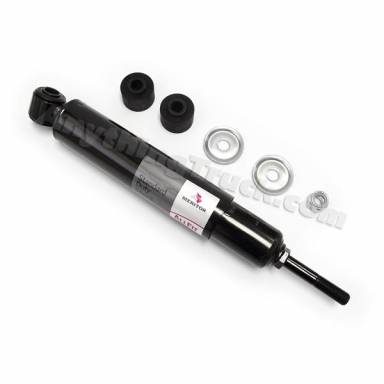

12	83111	Shock Absorber	4	57241-6
13	334-1115	Bolt Assy, Shock Absorber	2	50368
14	AS69659	Air Spring	4	64917-2, 58786-2
15	171H494OE	Height Control Valve	1	59899
16	48100225	Linkage Kit	1
17		Mounting Bracket, Height Control Valve	1	57975
18	TMR547	Track Rod	2	58757-6
19	338-181	Track Rod Bracket	2	22186
20	334-1875	Standard Hanger Re-Bush Kit	1	60683-1	Tandem
20	334-1876	Aluminum Hanger Re-Bush Kit	1	60683-3	Tandem

7 Items
