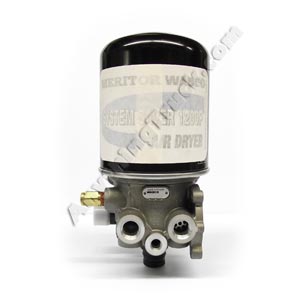

WABCO 4006110510 1200 System Saver Air Dryer, 24-Volts, Formerly Meritor R955206 Part Number: 815-4006110510

Not Yet Rated | Write the First Review

WABCO System Saver 1200 Installation Manual (.pdf)
WABCO System Saver 1200 Maintenance Manual (.pdf)

Special Notes

none

Product Description

Manufacturer: WABCO

Part Number: 400 611 051 0

Air Dryer Model: System Saver 1200, 24-Volt

Condition: New

For use in standard air -brake applications on truck, tractors, and buses

Features regeneration valve that helps to extend cartridge life

Spin-on desiccant cartridge

ID Tag Number: 432 413 002 0

Operating Temperature Range: -40°F to +175°F (-40°C, 80°C)

100 watt / 24 volt DC heater element

Thermostat Range: On-Temp - 45°F, Off-Temp - 86°F (7°C, 30°C)

Discharge Line Dia: 1/2" ID minimum

Discharge Line Length: Sufficient length to keep temperature at dryer inlet below 175°F (80°C)

Max Pressure: 140 psi

Min Governor Cut-Out Pressure: 115 psi

Height: 11.2" (284mm)

Width: 8.2" (208mm)

Projection From Frame: 5.7" (145mm)

Desiccant Volume: 1200 cc

Replaces obsolete Meritor part number R955206

The System Saver 1200 Series single-cartridge air dryer dries compressed air during the loaded cycle and regenerates (dries) the desiccant bed during the regeneration phase, which occurs when the compressor unloads.

Cross References: 400 611 051 0, 4006110510, 815-4006110510, R955206, 650-R955206, 432 413 004 0, 4324130040, SRWABK119, TDAR955206, ATIR955206, 4324130020, R955206-RI, AVR955206, TDA R955206, 955206X, KR955206, 8235-R955306, R955206NX, RWABK105, TWDR955206, ATIR955206, 85105994
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
