Bendix 065225 12-Volt AD-9 Air Dryer with Mounting Bracket Kit (No Wire Harness)

060-065225
Ratings Snapshot
5.0
out of 5
5 (1)
4 (0)
3 (0)
2 (0)
1 (0)
Would recommend this product.
100%
$304.78
Bendix 065225 12-Volt AD-9 Air Dryer with Mounting Bracket Kit (No Wire Harness)
Processing...
Availability
Qty in Stock: 9
Add'l Qty (1-4 days): 14
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details


Notice: Bendix has decided to drop the wire harness from this kit, so you will need to order a wire harness separately, if needed. See the bottom of this page.

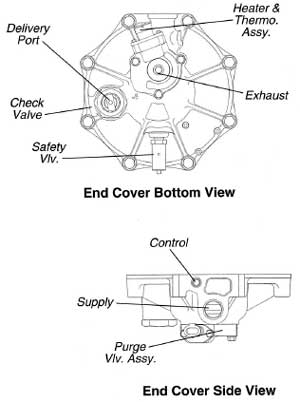

Bendix AD-9 Air Dryer End Cover schematic
Special Notes
none
Product Description
Manufacturer: Bendix
Part Number 065225
Condition: New
For use in standard air brake applications on truck, tractors, and buses
12 volt DC heater
Hard seat purge valve
Supply Port: 1/2" NPT
Delivery Port: 1/2" NPT
Includes mounting bracket kit

The function of the AD-9 air dryer is to collect and remove air system contaminants in solid, liquid and vapor form before they enter the brake system. It provides clean, dry air to the components of the brake system which increases the life of the system and reduces maintenance costs. Daily manual draining of the reservoirs is eliminated.

The AD-9 air dryer consists of a desiccant cartridge and a die cast aluminum end cover secured to a cylindrical steel outer shell with eight cap screws and nuts. The end cover contains a check valve assembly, a safety valve, three threaded air connections and the purge valve housing assembly. The removable purge valve housing assembly incorporates a purge valve mechanism and a turbo charger cut-off feature that is designed to prevent loss of engine "turbo" boost pressure during the purge cycle of the AD-9 air dryer. For ease of serviceability, the desiccant cartridge and discharge check valve assembly are screw in type. The purge valve housing assembly, which includes the heater and thermostat assembly, and the discharge check valve assembly, is serviceable from the exterior of the air dryer, while servicing the screw-in desiccant cartridge requires removal of the air dryer assembly from the vehicle.

Cross References: 065226, 107953, 107953X, 109685, 109685X, 65226, R1096859002783, 23880305, F0HZ2A131A, FOHZ2A131A, 4317715, 681410115, BW065225, 15665475, 26QE377, 26QE377P4, 26QE377P5, 26QE377P6, 745065225, 1673737C91, BX065225, ZAC065225, 1091606, 2FS82, 917352
A cross reference listing means that this air dryer is a suitable replacement for the part numbers listed. Some changes in plumbing and/or installation may be required.

1
Ratings Snapshot
5.0
out of 5
5 (1)
4 (0)
3 (0)
2 (0)
1 (0)
Would recommend this product.
100%
5.0
out of 5
5 (1)
4 (0)
3 (0)
2 (0)
1 (0)
Would recommend this product.
100%
Bendix Quality Product
5 out of 5
Eric
Location: San Antonio, TX
Date: July 27, 2017
Replaced a "bargain" AD-9 knock-off from China that lasted less than two years before soft seat plugged the purge valve port and shut off air supply to our motorhome. Bendix customer support very helpful on dryer technical issues. You get what you pay for! AnythingTruck was easy to deal with and shipped out new dryer as advertised and on time.
Verified Buyer Recommended
