1983-1998 Ford F600/F700/F800, FT800/FT900
Front Suspension with 4" Wide Springs


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Front 2 E3HZ5340B
E3HT4340AA 		F700 and F800; 1983-1994
1 N/A Hanger, Front, LH 2 F4HZ5340B F700, F800, FT900 10K/12K with taper leaf springs; 14K with multi-leaf springs; 1995-1998
1 N/A Hanger, Front, RH 2 F4HZ5340A F700, F800, FT900 10K/12K with taper leaf springs; 14K with multi-leaf springs; 1995-1998
1 N/A Hanger, Front, LH 2 F5HZ5340B F700, F800, FT900 10K/13K with multi-leaf springs
1 N/A Hanger, Front, RH 2 F5HZ5340A F700, F800, FT900 10K/13K with multi-leaf springs
2 338927 Hanger, Shackle; Cast 2 E5HZ5340C
E3HT5335AB		 10K-12K Axles

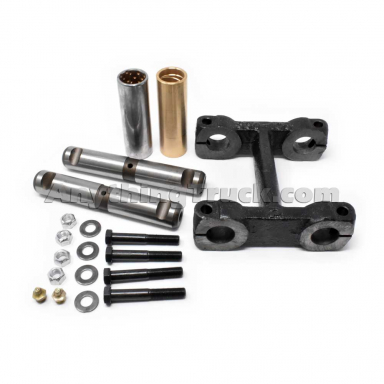

3 330100 Shackle Kit 2 E5HZ5304A For "F" Series with 10K axles & up; Includes one 330106 shackle, one 334129 bushing, one NJKBM bushing, two 327211 spring pins and hardware
4 330106 Shackle, Cast; 3-3/4" C to C 2 D0HA5B311A Use 330100 shackle kit
5 NJKBM Bushing, Bi-Metal;
1" ID x 1-1/4" OD x 4" L 		4/6 C7TZ5348C

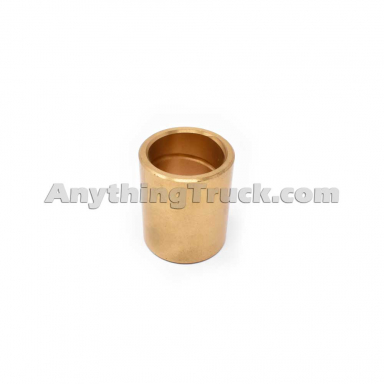

5 324106 Bushing, Bronze;
1" ID x 1-1/4" OD x 1-1/2" L 		2 E5HZ5348A "F" Series with 10K axles and up
5 324129 Bushing, Bronze;
1" ID x 1-1/4" OD x 4" L 		4/6 F2HZ5348A Replace with NJKBM

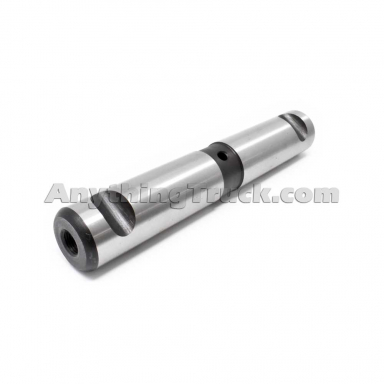

6 327211 Spring Pin;
1" OD x 6-1/8" L x 4-7/8" C to C 		4/6 D0HZ5780F Double Lock

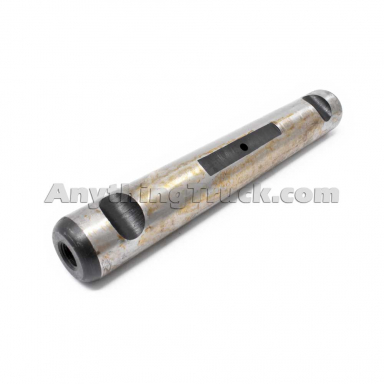

6 327209 Spring Pin;
1" OD x 6-3/4" L x 5-1/8" C to C 		4/6 D0HZ5780E Double Lock
7   Bolt; 3/8-24 x 2-1/2" 8   Included in 330100 shackle kit
8   Aluminum Wedge
9 361316 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455C 3/4" x 4" x 10-3/4", Ford Semi-Round Bend, Includes nuts and washers
