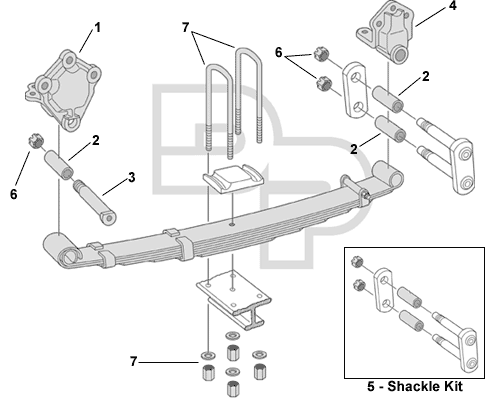

Ford C500-C900 Tilt Cab
Front Suspension Parts
| Key No. |
Part Number |
Description | No. Req. |
OEM Number |
Remarks |
|---|---|---|---|---|---|
| 1 | N/A | Hanger, Front | 2 | C6TZ5340A | C600/900 w/9-1/2" Frame; 1966 and Up |
| 1 | N/A | Hanger, Front | 2 | B7Q5340A | C600/900 w/9-3/4" Frame; 1964 and Up |
| 2 | NJGBM | Bushing, Bi-Metal; 1" ID x 1-1/4" OD x 3" L |
6 | C7TZ5348D | For 327148 |
| 2 | LHE | Bushing 7/8" ID x 1-1/8" OD x 2-1/2" L |
6 | 7EQ5348A | For 327205 |

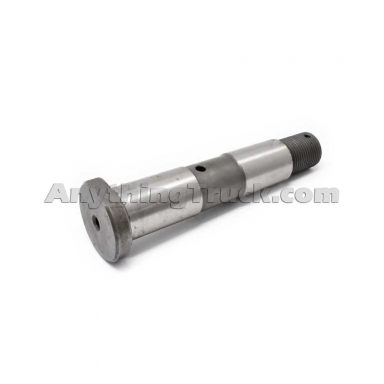

| 3 | 327148 | Spring Bolt; 1" ID x 5-7/32" L x 7/8"-14 NF |
2 | D5HZ5465A | |
| 3 | 327205 | Spring Bolt; 7/8" ID x 4-1/2" L x 3/4"-16 |
6 | A8TZ5465A | C500/C550/C600; 1957-1965 |
| 4 | 3381267 | Hanger | 2 | B7Q5335A | C600/900; 1964 and Up |
| 5 | 330107 | Shackle Kit | 2 | C6TZ5304B | C600/900 w/9-1/2" or 9-3/4" Frame; 1973 and Up |
| 6 | 334809 | Nut, Slotted 7/8"-14 NF | 6 | 351155-S | |
| 7 | 361318 | U-Bolt Kit; Special Bend, Grade 8 |
4 | D0HZ5455A | 5/8" x 4" x 7-3/8", Ford Semi-Round Bend, Includes nuts and washers |
