Ford CL9000 Cab Over
Front Suspension Parts

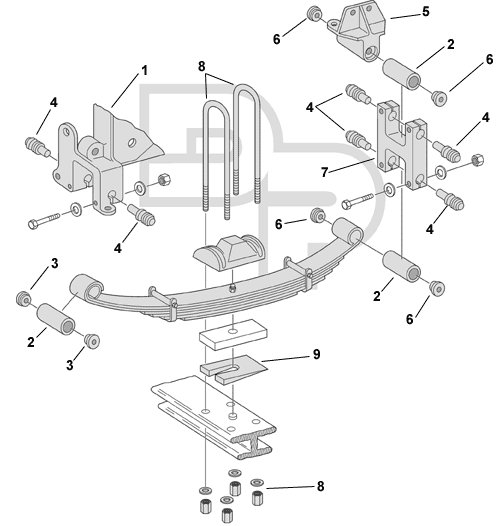

Ford CL9000 Front Suspension Diagram
Key
No.
Part
Number
Description No.
Req.
OEM
Number
Remarks
1 N/A Hanger, Front 2 Various
2 NJIBM Bushing, Bi-Metal;
1" ID x 1-1/4" OD x 3-1/2" L
4 D8HZ5348A
3 334472 Washer, Front Thrust
2.31" OD
4 D8HZ5A331A

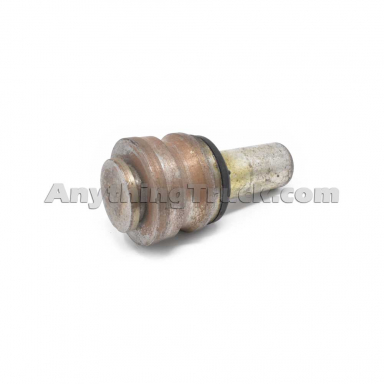

4 327435 Spring Pin;
1" OD x 3-11/16" C to E
12 D8HZ5B317A
5 N/A Hanger, Rear LH/RH 2 D8HZ5340B
6 334473 Washer, Rear Thrust
2.50" OD
8 D8HZ5A331B
7 N/A Shackle, Forged Aluminum; 2 D8HZ5B311A
8 361324 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order
4 D0HZ5455D 3/4" x 4" x 9-1/4", Ford Semi-Round Bend, Includes nuts and washers
9   Aluminum Wedge
