Air Glide 210/400L (2003+)

Kenworth Air Glide 210/400L Low Air Leaf
"Twisted Sister"
Drive Axle Suspension Parts

This suspension hit the streets in 2003. It's the same as the Peterbilt Low Mount Air Leaf 210L (AG210) and 400L (AG400L).

Key No.	Part Number	Description	No. Req.	OEM Number	Remarks
1	338-2300	Hanger	2	C11-1124
2	RB-268	Anti-Walk Bushing	2
3		Alignment Shim	AR	03-08782-002
4	334-2015	Bolt Assembly M20 x 1800mm Long	4	27-01113-180

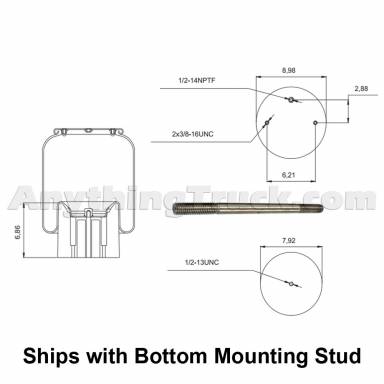

5	888864	Air Spring	2	C81-1011

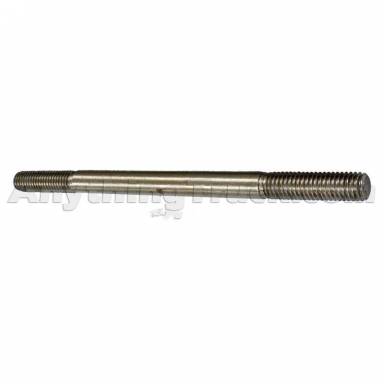

6	334-2087	Stud 1/2" x 8"	2	27-01746
7	338-2301	U-Bolt Saddle	2	03-08712
8	N/A	Axle Seat	2
9		Camber Wedge
10	338-2354	LH Axle Clamp, Shock Mount	1	C16-6001M00 C16-6001M02
10	338-2355	RH Axle Clamp, Shock Mount	1	C16-6001M0R
11	361-374	U-Bolt Kit 7/8" x 3" x 14-1/2"R	2	03-08693-365
12	N/A	Helper Bracket	2
13	N/A	Axle Stop	2
14	171H218OE	Height Control Valve	1		With Integral Dump
15	48100225	Linkage Kit	1	HPB450-3
16	TMR553	Track Rod 25-9/16" C to C, 0°/0°	2	TR030020010	Non-replaceable bushings
17	338-2302	Torque Rod Bracket	2	03-01656	OEM is aluminum
18	334-1317	Bolt Kit 5/8"-11 x 5"	1	27-01118-130	OEM is M16-2.0 x 130mm

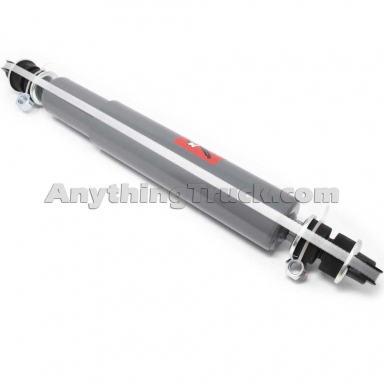

19	85069	Shock Absorber	2	03-08781
20		Helper Spring	2

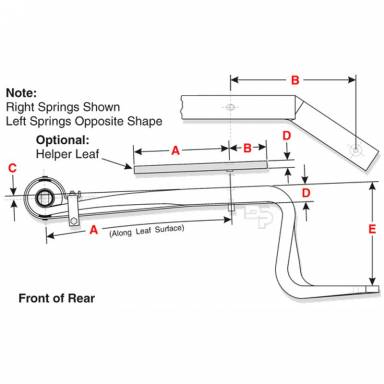

21		Spring Assembly	2
