Kenworth AG380 (Flex Air)
Drive Axle Suspension Parts


Kenworth AG380 Suspension Exploded View
Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 8813 Air Spring 4 C81-6000
2 M85067 Shock Absorber 4 C71-6000
3 334-754 Bolt Assembly
5/8"-18 x 5-1/2" Long		 16
4 334-768 Bolt Assembly
5/8"-18 x 4-1/2" Long		 4
5 75-167 Link, Spring 4 C81-6001A
6 RB-291 Bar Pin Pushing 4 C13-6001
RB-292 Bushing, 7/8" ID 4 C65-1002
7 327-316 Bolt, 7/8"-14 x 6-1/2" Long 4 27-00556-025
8 SLN-106 Lock Nut, 7/8"-14 4
9 334-1330 Bolt Assembly, M16-2.0 x 160mm 8 27-01118-160

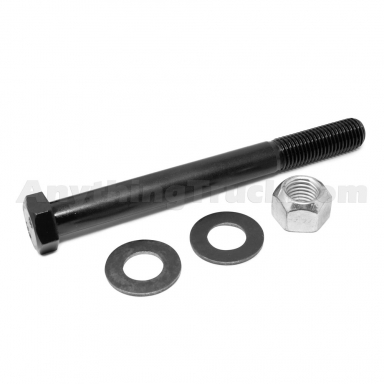

334-1337 Bolt Assembly, M16-2.0 x 150mm 4 27-04448-150
10 TMR537 Torque Rod, 23-3/4" C/C 1 C65-6000-001 Front
TMR539 Torque Rod, 24-5/8" C/C 1 C65-6000-002 Rear
11 334-1701 Bolt Assembly, 7/8"-14 x 5-1/2" Long 4 27-00556-022
12 TS43442 Shim, 1/16" Thick AR
13 TR0041009 Track Rod, Poly Bushings, 25-1/2" C/C 2 C65-6002
14 361-641 U-Bolt Kit, Square Bend 8 C34-6000 7/8" x 5" x 14" Square
AUBK8866-134S U-Bolt Kit, Square Bend 8 C34-6000 M22x1.5" x 131mm x 343mm Square
15   Insulator 16   Use 334-1645
