Kenworth Airglide 100
Drive Axle Suspension Parts

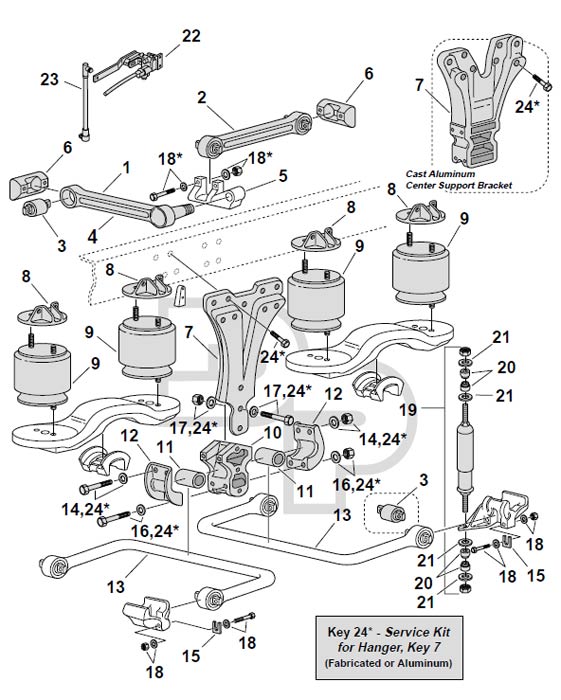

Kenworth Airglide 100 air Suspension Exploded View
Key
No.
Part
Number
Description No.
Req.
OEM
Number
Remarks
1 TMR69 Track Rod Assembly
24" C to C
2 K195-376
944270

1 345-886 Track Rod Assembly
25" C to C
2 925150
2 TMR67 Torque Rod Assembly 2 K195-375
925031

3 321-132 Straddlemount Torque Rod Bushing
2-3/4"OD x 4-3/8" C to C
2 44695
227720
For 5/8" Bolts and 1-1/4" Forged Rods

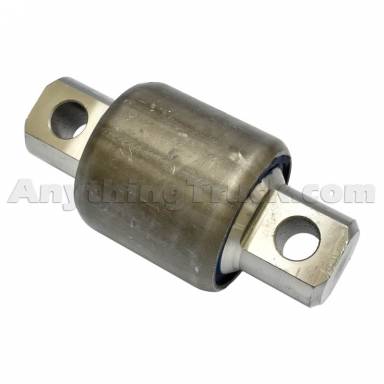

3 TS38000 Polyurethane Torque Rod Bushing
2-3/4"OD x 4-3/8" C to C
2
4 321-133 Tapered Stud Torque Rod Bushing 2 44697

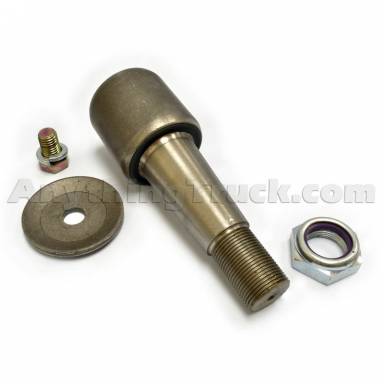

4 TT38000 Polyurethane Torque Rod Bushing 2
5 N/A Torque Rod Bracket 2 K055-267
6 MK16938 Torque Rod Bracket 2 K055-405
7 KW7A Fabricated Center Bracket 2 K272-145
7 338-1841 Cast Center Bracket 2 K274-184 Aluminum, 1994+
8 MK16916 Air Spring Bracket 8 K048-449 Upper
9 889422 Air Spring 8 K303-6/14/15
9 352-9415 Air Spring 8 K102A, K303-5
10 338-1842 Stabilizer Bar Mount 2 K197-2943

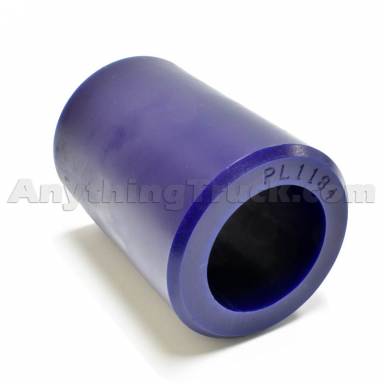

11 PL1184 Polyurethane Stabilizer Bar Bushing 4 K066-58
K066-293

12 338-1843 Stabilizer Bar Mount Cap 4 K071-304
13 MK16960 Stabilizer Bar 2 K202-1730
14 334-1329 Bolt Assembly
M16-2.0 x 260mm
4 K041-712-260P
K144-145-24
Includes bolt and hardware
14 334-1335 Bolt Assembly
M20-2.5 x 260mm
4 K041-724-260P
K144-145-24
Includes bolt and hardware
15 334-1332 Shim
1-1/4" x 1-1/4" x 1/16"Thk
16 K221-922-2
15 334-1333 Shim
1-1/4" x 1-1/4" x 1/8"Thk
16 K221-922-3
16 334-1330 Bolt Assembly
M16-2.0 x 160mm
4 K041-717-160P Early
17 334-1336 Bolt Assembly
M16-2.0 x 170mm
6 K041-712-170P Late
18 334-1331 Bolt Assembly
M16-2.0 x 120mm
2 K041-712-130P Early
18 334-1337 Bolt Assembly
M16-2.0 x 150mm
2 K041-712-150P Late

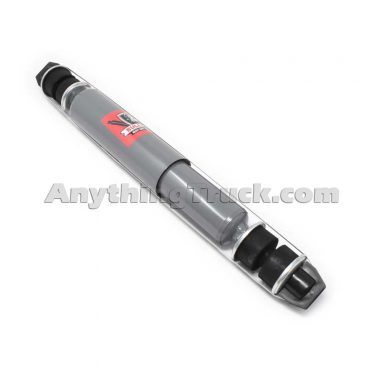

19 85310 Shock Absorber 4   Includes bushings and hardware
20 320-178 Shock Absorber Bushing 16 K066-266
20 320-178U Polyurethane Bushing 16
21 334-1334 Shock Absorber Washer 16 K198-810 Cupped
22 E9623 Height Control Valve 1
22 VS227 Height Control Valve 1
22 171H218OE Height Control Valve 1
23 48100225 Linkage Kit 2
24 334-1871 Service Kit, Fabricated Hanger 2   Includes all hardware for KW7A install
24 334-1871 Service Kit, Aluminum Hanger 2   Includes all hardware for 337-1841 install
