Product Details
- Special Notes
- none
- Product Description
- Replaces Bendix TR-3 and SV-1 and Humphrey 250A N/O valves
- Pilot operated
- Dual delivery design allows for in-line plumbing of air spring lines and eliminates need for tee fittings
- (4) 1/8" pipe ports
- Mount on either the right or left frame rail using 1/4" mounting holes
- Use one dump valve per height control valve
The Rapid Dump air suspension dump valve offers a simple method for quick dumping of your truck or trailer air suspension pressure.
- Install the Rapid Dump valve between the leveling valve and the air bags
- Connect the output from the leveling valve to the supply port on Rapid Dump
- Connect the 2 delivery ports on Rapid Dump to the air bags (plug one delivery port, if necessary)

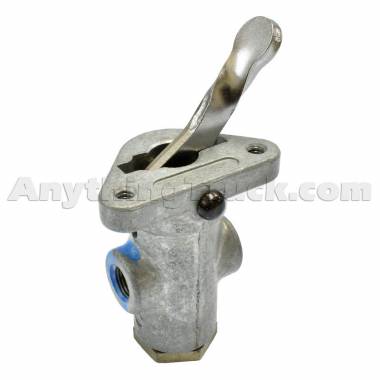

- Connect the Rapid Dump pilot port to your air source on the dash (A PP1 or TW1 lever valve) or use a toggle switch and normally-closed electric solenoid.
When you switch on the pilot air in the the cab, Rapid Dump's supply port will close and the delivery pressure will be released to the atmosphere. Release the pilot pressure and Rapid Dump's supply port will reopen, allowing air pressure from the leveling valve to travel to the air bags.
Customer Ratings & Reviews
Ratings Snapshot
out of 5
5
(4)
4
(0)
3
(0)
2
(0)
1
(0)
Would recommend this product.
100%
out of 5
5
(4)
4
(0)
3
(0)
2
(0)
1
(0)
Would recommend this product.
100%
Fantastic add-on to Air Spring Bag system.
Jack_Shaws
Location: Indiana
Date: November 8, 2018
My truck is a 93 Int 4700 with Air Springs. Rather than spend high dollars on a leveling valve with air dump I purchased this item. I already had a 12vdc air valve from an air horn assembly. Took me longer to order the 1/8" pipe to 3/8" tube adapters than it did to install. I used the air supply to the leveler with a T to the 12vdc air valve to the Pilot. Air out from leveler to Supply. Took out the original T in the Air Bags and plugged those lines right in. 15 minutes and done. My rollback was at a 10 degree angle, now 5.5 degrees. Well worth the effort.
Verified Buyer
Recommended
Rapid Dump Air Suspension Dump Valve
John H
Location: San Bernardino, CA
Date: July 21, 2015
works as advertised.
Verified Buyer
Recommended
I am returning this valve
TIM P.
Location:
Date: October 18, 2014
I am returning this valve because I want a valve that dumps when that air is removed Thanks,
Recommended
Outstanding and works great.
Philip S.
Location:
Date: August 20, 2014
Outstanding and works great.
