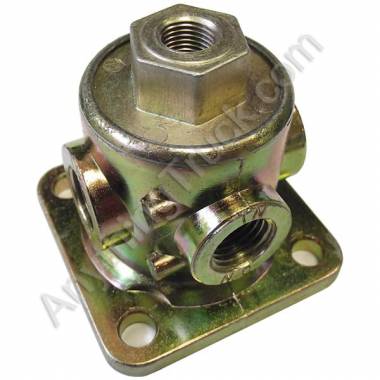

Genuine Haldex 90554615 3-Way Pilot Valve, Use in Air Suspension Dump Systems and Lift Axle Control Part Number: 070-90554615MID

1

| Write a Review

Ratings Snapshot

5.0

out of 5

5 (1)

4 (0)

3 (0)

2 (0)

1 (0)

Would recommend this product.

100%

Special Notes

Do NOT use in brake systems

Product Description

Manufacturer: Haldex

Part Number: 90554615

Pilot-operated air switch

Can be set up "Normally Closed" or "Normally Open"

Normally Open Port: 1/4" NPT

Normally Closed Port: 1/4" NPT

Suspension Port: 1/4" NPT

Pilot Port: 1/8" NPT

Dimensions: 2-1/4" W x 2-1/4" D x 2" H

Mounting Holes: 1/4" on 1-5/8" centers

Use one valve per height control valve when plumbing a dump system

Pilot air pressure can be switched manually or with an electric solenoid (not included)

Cross References: 90554615, 070-90554615, VS-38689, VS38689, 356-VS38689, VS-23588, VS23588, 356-VS23588, 334-2077, 3342077, 90554615-MD, E5HS5A743AA, E6HS5A743AA, 53-32374-000, 5332374000, 41902463, HAL90554615, 90054079, 90054206, 9941-0123, 99410123, F4A0238, 20QE2255, 20QE2255D, 5396-90554615, MID90554615, MBI90554615, 1609164C91, 905-54-615, S-10350, S10350, 401284, 29934, 80-107880, 80107880, NE-90554615, 767653254173, 8071546, 12900028, A-NB3068-2, AN30682, 35704-0008, 357040008, 334-1600, 3341600, E-4328, E4328, 270-E4328, N177, AC005, JA2503-10-21, JA25031021, R304328, 9AR-1408, AR1408, AR-2657, AR2657, 034074, 810-034074
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

PTP 90554615 Pilot Valve Installation Instructions (.pdf)
