SAF Holland PH-550 50-Ton Rigid Type Pintle Hook with Air Cushioned Snubber Part Number: 370-PH550

Not Yet Rated | Write the First Review

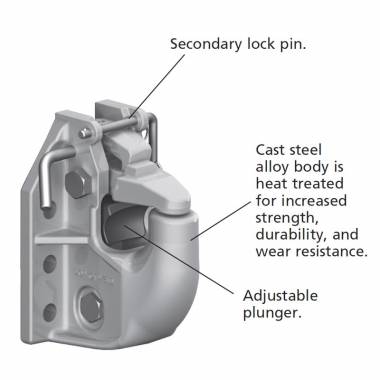

The SAF Holland PH-550 is a rigid mount pintle hook for trailers and semitrailers in doubles and triples operations. Use this pintle hook for off-road and over-the-road applications. The included air cushioned snubber is designed to minimize the gap between the pintle hook and the drawbar eye on vehicles with air systems.

Special Notes

none

Product Description

Manufacturer: SAF Holland

Part Number: PH-550

Heat treated cast alloy steel body

Drawbar Eye Dimensions: 2.38" to 3" with 1.25" to 1.63" diameter section

Tested in accordance with SAE J847 (Type I and Type II)

MGTW: 100,000 lbs.

Max. Vertical Load: 25,000 lbs.

Includes air cushioned snubber

Cross References: PH-550, PH550, 370-PH550, 3889-PH550, TWDPH550, SAFPH550, HLDPH550, HOHPH550
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

SAF Holland PH-550 Pintle Hook Specification Sheet (.pdf)
