Hendrickson INTRAAX AANT 23K Top Mount Fixed

Hendrickson INTRAAX AANT 23K Top Mount
Fixed Trailer Suspension Parts

Hendrickson INTRAAX AANT 23K trailer suspension exploded view

Key No.	Part Number	Description	No. Req.	OEM Number	Remarks
1	Special Order	Air Spring, Standard Pressure	2	S-26773	12" - 13" ride heights
1	8709	Air Spring, Standard Pressure	2	S-21800	13.5" - 19" ride heights
1	8091	Air Spring, Low Pressure	2	S-20901	13.5" - 19" ride heights
2	S-23294	Air Spring Flex Plate	2	S-23294	Weld-on
2	Special Order	Air Spring Mounting Plate	2	Various
3	3341802	Air Spring Spacer Plastic 1-1/8" thick spacer	2	B-22510-1	17" ride height, standard travel
3	3341803	Air Spring Spacer Plastic 1-7/8" thick spacer	2	B-22510-2	18" ride height, standard travel
3	3341804	Air Spring Spacer Plastic 3-1/8" thick spacer	2	B-22510-2	19" ride height, standard travel
4	Special Order	Air Spring Mounting Kit	2	S-22907/2	Standard frame thickness
4	Special Order	Air Spring Mounting Kit	2	S-22619/2
4	3341629	Air Spring Mounting Kit	2	S-22630/2
4	3341630	Air Spring Mounting Kit	2	S-22631/2
4	3341702	Air Spring Mounting Kit	2	S-22632/2
5	3341637	Quick Align Pivot Bolt Kit	2	S-24705	Includes 7" shear-type bolt, nut, and washers
6	S-26321	Tri-Functional Bushing Kit	4	S-26321	Includes 2 bushings, 2 pivot bolt kits, 4 bushing tube spacers, and lubricant
7	85064	Shock Absorber 12" ride height	2	S-23743
7	85045	Shock Absorber 13" ride height	2	S-23743	Standard travel; High control models
7	Special Order	Shock Absorber 13" ride height	2	S-24579	Extended service with high damping; High control models
7	85000	Shock Absorber 13.5" - 17" ride heights	2	S-23361	Standard travel; High control models
7	85000	Shock Absorber 13.5" - 19" ride heights	2	S-23566	Standard travel
7	85738	Shock Absorber 13.5" - 19" ride heights	2	S-24023	Extended service with high damping

17 Items

Spring Pro 888709 Air Bag, Replaces Hendrickson Trailer (Intraax AA230) S-21800 — Spring Pro 888709 Air Bag, Replaces Hendrickson Trailer (Intraax AA230) S-21800 Part Number: 280-8709 $138.87

3

Ratings Snapshot

5

out of 5

Would recommend this product.

Spring Pro 888091 Air Bag, Replaces Hendrickson S-20901 and Firestone W01-358-8091 — Spring Pro 888091 Air Bag, Replaces Hendrickson S-20901 and Firestone W01-358-8091 Part Number: 280-8091 $146.48 Not Yet Rated

MHS756 Plastic Air Spring Spacer, 1-1/8" Tall, Replaces Hendrickson B-22510-1 — MHS756 Plastic Air Spring Spacer, 1-1/8" Tall, Replaces Hendrickson B-22510-1 Part Number: 052-MHS756 $26.71 Not Yet Rated

PTP MHS758PTP Plastic Air Spring Spacer, 1-7/8" Tall, Replaces Hendrickson S-22510-2 — PTP MHS758PTP Plastic Air Spring Spacer, 1-7/8" Tall, Replaces Hendrickson S-22510-2 Part Number: 052-MHS758 $29.08 Not Yet Rated

MHS760 Plastic Air Spring Spacer, 3-1/8" Tall, Replaces Hendrickson B-22510-3 — MHS760 Plastic Air Spring Spacer, 3-1/8" Tall, Replaces Hendrickson B-22510-3 Part Number: 052-MHS760 $45.47 Not Yet Rated

MHSK450 Air Spring Mounting Kit, Fits 1-1/8" Spacers, Replaces Hendrickson S-22630/2 — MHSK450 Air Spring Mounting Kit, Fits 1-1/8" Spacers, Replaces Hendrickson S-22630/2 Part Number: 052-MHSK450 $26.46 Not Yet Rated

MHSK452 Air Spring Mounting Kit, Fits 1-7/8" Spacers, Replaces Hendrickson S-22631/2 — MHSK452 Air Spring Mounting Kit, Fits 1-7/8" Spacers, Replaces Hendrickson S-22631/2 Part Number: 052-MHSK452 $30.00 Not Yet Rated

MHSK454 Intraax Air Bag Mounting Spacer Kit, 3-1/8", Replaces Hendrickson S-22632/2 — MHSK454 Intraax Air Bag Mounting Spacer Kit, 3-1/8", Replaces Hendrickson S-22632/2 Part Number: 052-MHSK454 $39.13

1

Ratings Snapshot

5

out of 5

Would recommend this product.

Hendrickson S-26321 Tri-Functional Pivot Bushing Kit — Hendrickson S-26321 Tri-Functional Pivot Bushing Kit Part Number: 356-S26321 $312.80 Not Yet Rated

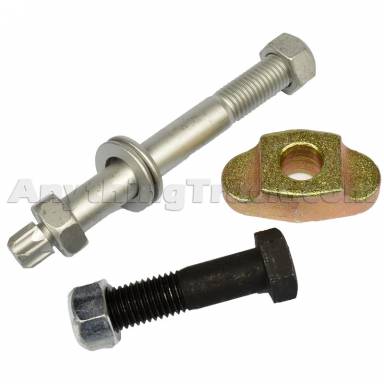

MHT673 Shock Bolt Kit & ZMD Down Stop Bolt Kit, Replaces Hendrickson S-24049/2 — MHT673 Shock Bolt Kit & ZMD Down Stop Bolt Kit, Replaces Hendrickson S-24049/2 Part Number: 052-MHT673 $47.58 Not Yet Rated

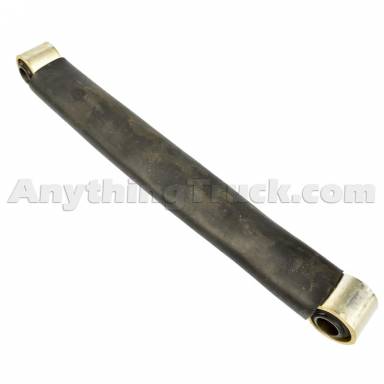

Hendrickson S-33669-3 INTRAAX AANT 23K Suspension Downstop, 16-5/8" Long C to C — Hendrickson S-33669-3 INTRAAX AANT 23K Suspension Downstop, 16-5/8" Long C to C Part Number: 356-S336693 $74.00 Not Yet Rated

Hendrickson S-33669 INTRAAX AANT 23K Suspension Downstop, 15-3/4" Long C to C — Hendrickson S-33669 INTRAAX AANT 23K Suspension Downstop, 15-3/4" Long C to C Part Number: 356-S33669 $77.28 Not Yet Rated
