Hendrickson INTRAAX AANL 23K Low-Ride, Height-Liftable Fixed

Hendrickson INTRAAX AANL 23K Low-Ride Height-Liftable
Fixed Trailer Suspension Parts

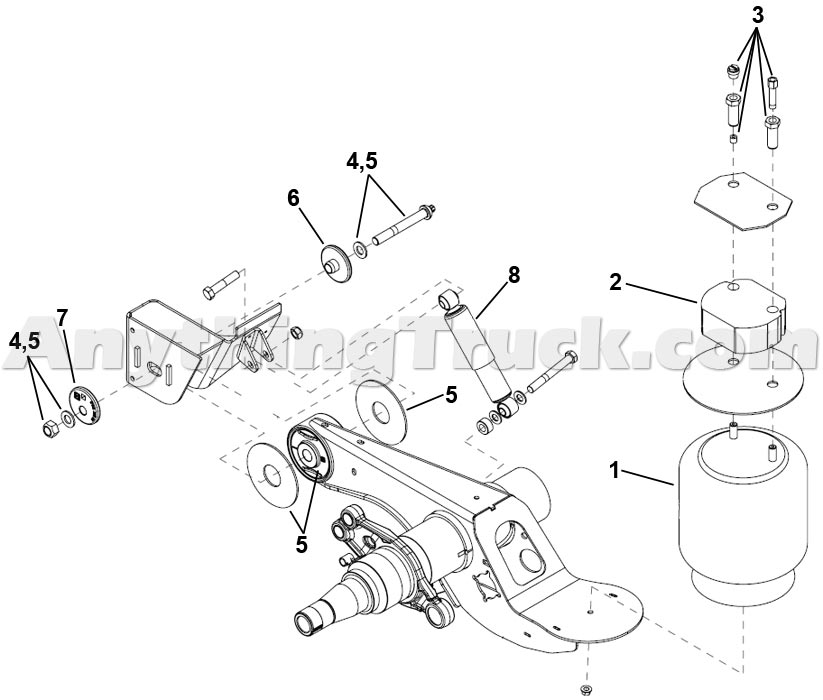

Key No.	Part Number	Description	No. Req.	OEM Number	Remarks

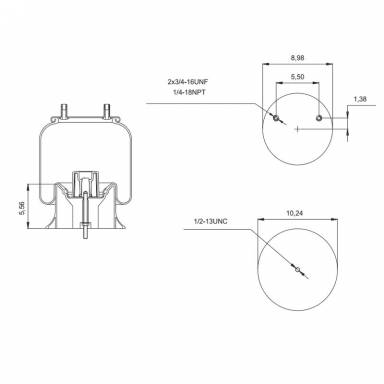

1	9626	Air Spring, Standard Pressure	2	S-23720	6.5" - 7.5" ride heights
1	9621	Air Spring, Standard Pressure	2	S-23613	8" - 9" ride heights
1	9619	Air Spring, Standard Pressure	2	S-23614	12" - 17" ride heights

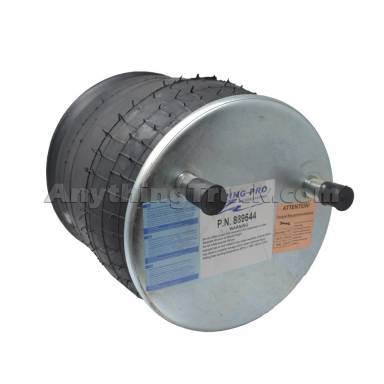

1	9644	Air Spring, Low Pressure	2	S-23721	6.5" - 7.5" ride heights
1	9646	Air Spring, Low Pressure	2	S-23611	8" - 9" ride heights

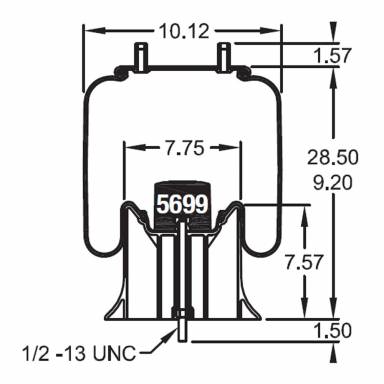

1	9645	Air Spring, Low Pressure	2	S-23612	12" - 17" ride heights
2	3341804	Air Spring Spacer Plastic 3-1/8" thick spacer	2	B-22510-3	15" and 16" ride heights
2	Special Order	Air Spring Spacer Plastic 4-13/16" thick spacer	2	B-22510-4	17" ride height
3	Special Order	Air Spring Mounting Kit 6.5" - 12" and 17" - 19" ride heights	2	S-22619/2/2	Standard frame thickness
3	3341629	Air Spring Mounting Kit 14" ride heights	2	S-22630/2
3	3341702	Air Spring Mounting Kit 15" and 16" ride heights	2	S-22632/2
4	3341637	Quick Align Pivot Bolt Kit	2	S-24705	Includes 7" shear-type bolt, nut, and washers
5	S-26321	Tri-Functional Bushing Kit	4	S-26321	Includes 2 bushings, 2 pivot bolt kits, 4 bushing tube spacers, and lubricant

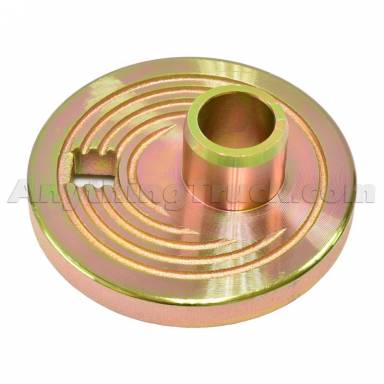

6	MHS99	Eccentric Alignment Collar (Inner)	2	S-20924	Pivot hole is in center of collar
7	MHS97	Eccentric Alignment Collar (Outer)	2	S-20925	Pivot hole is offset from the center of collar

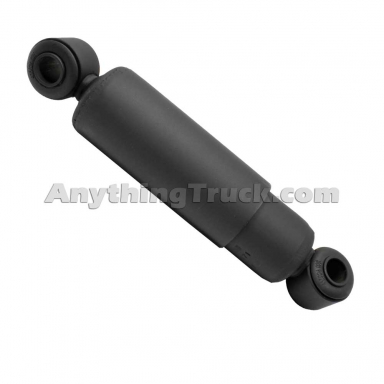

8	Special Order	Shock Absorber	2	Various

10 Items
