NT-2 & NT-2W Pro Trac

Fruehauf NT-2 & NT-2W Pro-Trac
Trailer Suspension Parts

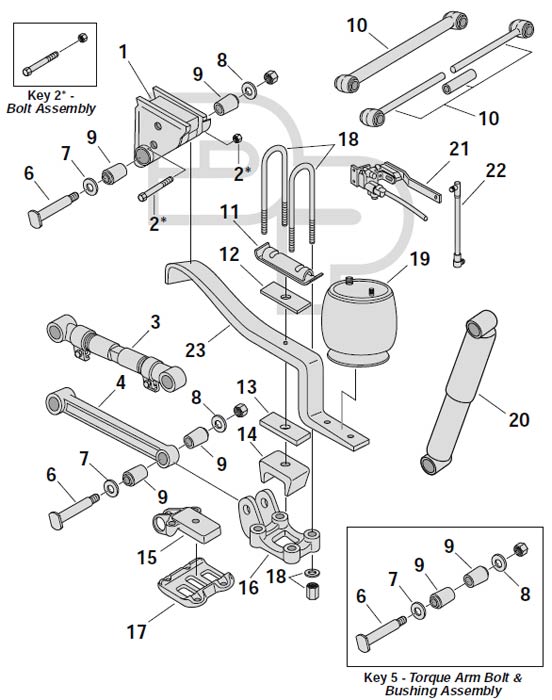

Key No.	Part Number	Description	No. Req.	OEM Number	Remarks
1	M21194	Hanger	2	UCF006668-001
2	334-770	Bolt Assembly 5/8"-18 x 5"	2	FSP005-03-049	Includes nut and washers
3	M2151	Torque Rod, Adjustable 14-3/4" - 16-3/8"	1	UCF002460-001	Use E1023 bushing service kit
4	M2152	Torque Rod, Rigid 15-1/2" C to C	1	UXA000026-001	Use E1023 bushing service kit
5	E1023	Bolt & Bushing Service Kit	4	UXA000011-900	Includes two bushings, bolt, and hardware
6	345-566	Torque Rod Bolt	4	UXA000016	Use E1023 bushing and bolt service kit
7	SFW-125	1-1/4" Flat Washer	4
8	334-568	Compression Washer	4	UXA000002
9	321-177	Bushing	8	UXA000011	With nylon sleeve; Use E1023 service kit
10	Special Order	Track Rod	1	Various
11	1686801	U-Bolt Saddle	2	UCE008801-001
12	GL-295	Liner	2
13	338-397	Spacer	2	UCF006972-003	14" to 15" ride heights
14	338-1111	5" Square Axle Seat	2	AXA000512-001
15	E-10778	Torque Rod Bracket 5" Square Axle	2	UCF006696-001	High ride; 14-3/4" to 15-1/2" ride height
16	N/A	Torque Rod Bracket	2	UCF006702-001	Low ride; 13-1/4" to 14" ride height
17	338-471	Bottom Clamp Plate	2	UCC002610-001
18	EUB516114	U-Bolt Assembly	4	UXA000046-917	7/8" x 3 x 14R

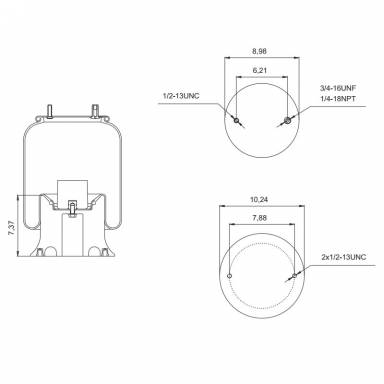

19	889394	Air spring	2	UCE000993-001 UCE000993-002

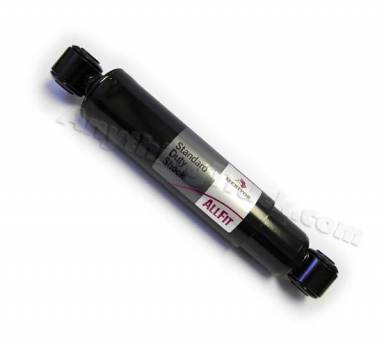

20	85030	Shock Absorber	2	UCE008339-001 UCE008339-901	Collapsed Length: 14.84" Extended Length: 24.00"
21		Height Control Valve	1	Various

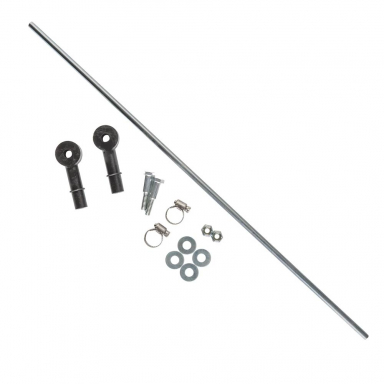

22		Linkage Kit	1	Various
23	TRA-086	Z-Spring	2	UCF008314-001 UVA000092-001	TRA-086 should be used to replace the obsolete TRA-082, but must be replaced in pairs

13 Items
