FASII Airliner (1990+)

Freightliner FASII Airliner (1990+)
Drive Axle Suspension Parts

Freightliner FASII Airliner Suspension Exploded View

Key No.	Part Number	Description	No. Req.	OEM Number	Remarks
1	338-1419	Hanger	2	681 321 1201 16-14031-003	Heavy Flange; Iron
1	338-2278	Hanger	2	16-13901-000 16-14031-000	Iron
2	E-8803	LH Wear Pad	2	681 325 2109
2	334-1993	LH Wear Pad	2	16-16456-000	Use with RB-268
3	E-8802	RH Wear Pad	2	681 325 2209
3	334-1994	RH Wear Pad	2	16-16456-001	Use with RB-268
4	334-756	Bolt Assembly 3/4"-16 x 5-1/2"	4		Bolt & lock nut
5	RB-205	Bushing 2-1/2"OD x 7-1/2"OAL	2	681 325 0150
5	RB-205U	Bushing Polyurethane	2
5	RB-268	Bushing Ant-Walk	2	16-16412-001
6	EUB8267153	U-Bolt Kit 7/8" x 5-1/4" x 15-5/8"FS	4	681 325 0325	Includes one u-bolt, two nuts, and two washers
6	361-636	U-Bolt Kit 1" x 5-1/8" x 17-7/8"R	4		Includes one u-bolt, two nuts, and two washers
7		Axle Seat	2	Various
8	338-2279	Top Plate	1	16-14787-000	LH, 2.5°, Square U-Bolts
8	338-2280	Top Plate	1	16-14787-001	RH, 2.5°, Square U-Bolts
8	338-2282	Top Plate	2	16-14786-000	RH/LH, 0°, Square U-Bolts
8	338-2281	Top Plate	2	16-14783-000	Round U-Bolts
9	338-2283	Bottom Plate	2	16-14266-001	Square U-bolts
9	338-2265	Bottom Plate	2	16-14016-001	Round U-bolts
10	TMR514	Track Rod 23-15/16, 0°/35°	1	681 326 6716
	345-915	Track Rod 23-15/16"	1	A16-16749-001	Solid Spacer
	345-213	Track Rod 22.89", 0°/35°	1	681 326 6316
	TMR535	Track Rod 24-1/2, 0°/35°	1	16-16749-002
	TMR536	Track Rod 24-7/32, 0°/35°	1	16-18972-000
	345-888	Track Rod 24.44"	1	16-14149-002	5/8" Bolts, 7.5° Twist
11	321-223	Bushing 4-3/8" C to C, 5/8" Bolts	2
12	N/A	Torque Rod Bracket	2	16-12324-000
13	85724	Shock Absorber	2
14	352-9780	Air Spring	2	681 320 0017	40K, Composite Piston, Use 9781
14	889781	Air Spring	2	16-14004-000 16-14377-000	46K, Aluminum Piston
14	352-9782	Air Spring	2	16-16773-000	Steel Piston
15		Height Control Valve	1	Various	See our height control valves to match up yours
16		Linkage Kit	2	Various
17	334-1654	Shock Absorber Bracket Kit	2	681 320 2535 681 320 2435	Includes bracket and spacers
17	334-1652	Shock Absorber Bracket	2	681 325 1578	Late model, no spacers required
18	334-1318	Alignment Shim, 1/8"	AR	681 328 1384
18	334-1319	Alignment Shim, 1/16"	AR	681 328 2184
19	Call	Spring Assembly	2	Various

14 Items

Spring Pro 889781 Air Bag, Replaces Freightliner 16-1673-000 & Firestone W01-358-9781, Aluminum Base — Spring Pro 889781 Air Bag, Replaces Freightliner 16-1673-000 & Firestone W01-358-9781, Aluminum Base Part Number: 280-9781 $119.40

3

Ratings Snapshot

4.667

out of 5

Would recommend this product.

PTP RB-268 Anti-Walk Straddle Bushing, 5.672" C to C — PTP RB-268 Anti-Walk Straddle Bushing, 5.672" C to C Part Number: 285-RB268 $69.14 Not Yet Rated

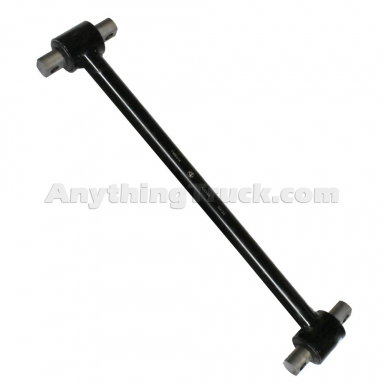

TMR514 Freightliner Torque Rod, Rubber Bushings, 23-15/16" C to C — TMR514 Freightliner Torque Rod, Rubber Bushings, 23-15/16" C to C Part Number: 052-TMR514 $107.68

1

Ratings Snapshot

5

out of 5

Would recommend this product.

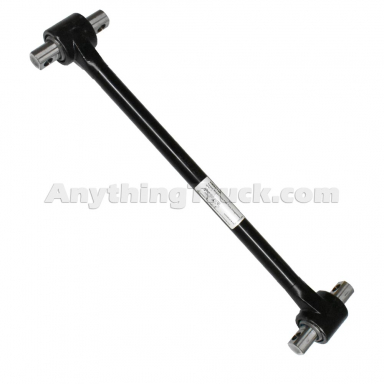

TMR514E Freightliner Torque Rod, Polyurethane Bushings, 23-15/16" C to C — TMR514E Freightliner Torque Rod, Polyurethane Bushings, 23-15/16" C to C Part Number: 052-TMR514E $152.95 Not Yet Rated

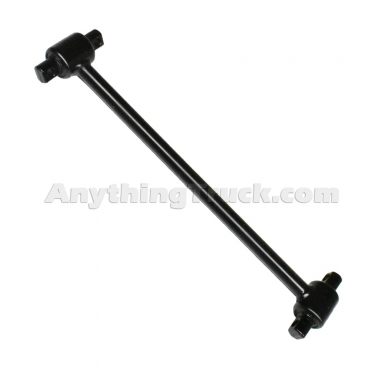

TMR535 Freightliner Torque Rod, Rubber Bushings, 24.330" C to C — TMR535 Freightliner Torque Rod, Rubber Bushings, 24.330" C to C Part Number: 052-TMR535 $117.39 Not Yet Rated

Dayton Parts 321-223 Straddlemount Bushing, 2" OD, 5/8" Hole, 4-3/8" Hole Spacing — Dayton Parts 321-223 Straddlemount Bushing, 2" OD, 5/8" Hole, 4-3/8" Hole Spacing Part Number: 797-321223 $27.37 Not Yet Rated

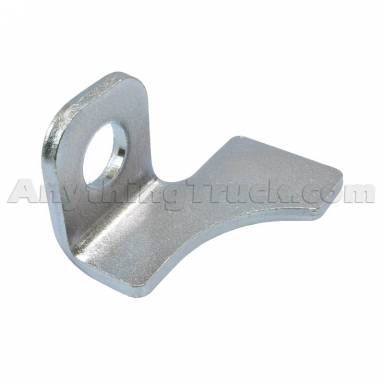

Euclid E-8802 RH Hanger Wear Pad, Freightliner FASII Airliner, OEM# 6813252209 — Euclid E-8802 RH Hanger Wear Pad, Freightliner FASII Airliner, OEM# 6813252209 Part Number: 270-E8802 $14.04 Not Yet Rated

Euclid E-8803 LH Hanger Wear Pad, Freightliner FASII Airliner, OEM# 681 325 2109 — Euclid E-8803 LH Hanger Wear Pad, Freightliner FASII Airliner, OEM# 681 325 2109 Part Number: 270-E8803 $14.04 Not Yet Rated

Dayton Parts 334-756 Grade 8 Bolt Kit, 3/4"-16 x 5-1/2" — Dayton Parts 334-756 Grade 8 Bolt Kit, 3/4"-16 x 5-1/2" Part Number: 797-334756 $10.35 Not Yet Rated

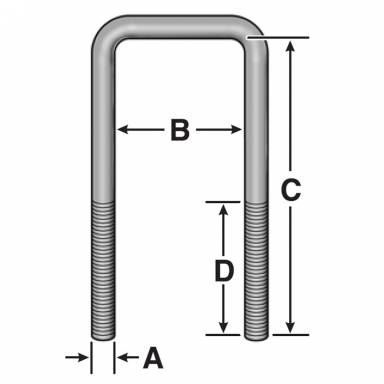

PTP EUB8267153PTP U-Bolt Kit, Freightliner FASII Airliner, OEM# 6813250325 — PTP EUB8267153PTP U-Bolt Kit, Freightliner FASII Airliner, OEM# 6813250325 Part Number: 270-EUB8267153 $37.24 Not Yet Rated

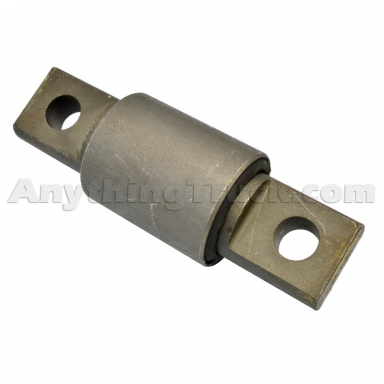

Dayton Parts RB-205 Straddlemount Bushing, 2.5"OD, 3/4" Bolts — Dayton Parts RB-205 Straddlemount Bushing, 2.5"OD, 3/4" Bolts Part Number: 797-RB205 $49.22 Not Yet Rated

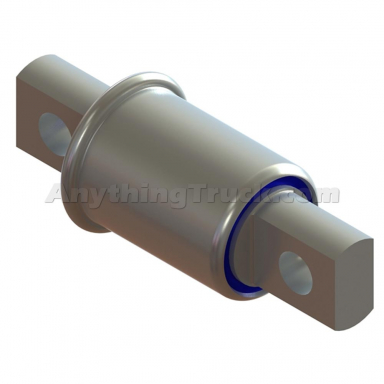

Atro PB46-26268 Pivot Bushing, Anti-Walk, High Confinement — Atro PB46-26268 Pivot Bushing, Anti-Walk, High Confinement Part Number: 049-PB4626268 $91.19 Not Yet Rated
