WABCO 4005001010 Enhanced Easy-Stop TCS II Trailer ABS Assembly, 2S/1M Basic with Bracket Part Number: 815-4005001010

Not Yet Rated | Write the First Review

The WABCO 4005001010 is a complete Enhanced Easy-Stop TCS II Basic trailer ABS assembly for 2S/1M systems. The unit integrates the ECU, single modulator valve, relay valve, and mounting bracket in a single assembly. The ECU monitors two wheel speed sensors and signals the single modulator valve to reduce brake pressure and prevent wheel lockup. For use on standard trailers produced after March 1, 2001. Not recommended for turntables, steerables, or dollies.

Product Description

Manufacturer: WABCO

Part Number: 4005001010

Type: TCS II Basic, 2S/1M MSH

Function: Enhanced Easy-Stop Trailer ABS Assembly

System: 2S/1M

Application: Standard Trailers Produced After March 1, 2001

Not For Use On: Turntables, Steerables, or Dollies

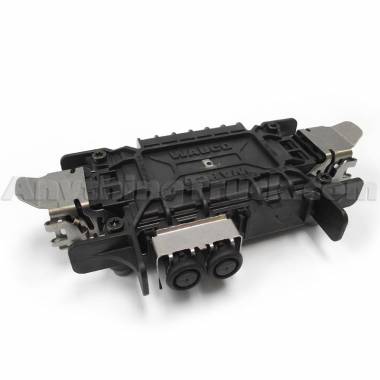

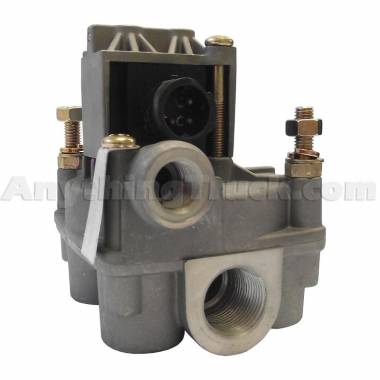

Assembly Includes: ECU (4461082010), Single Modulator Valve (4721950330), Relay Valve, Mounting Bracket (4784070584)

Voltage: 12V

Max. Operating Pressure: 188.5 psi

Port Thread 1 — Supply: 3/4"-14 Dry Seal NPTF (x2)

Port Thread 2 — Delivery: 3/8"-18 Dry Seal NPTF (x4)

Port Thread 3 — Exhaust: Flap (no threads)

Port Thread 4 — Control: 3/8"-18 Dry Seal NPTF

Ingress Protection: IP66

Operating Temperature: -40°C to +65°C

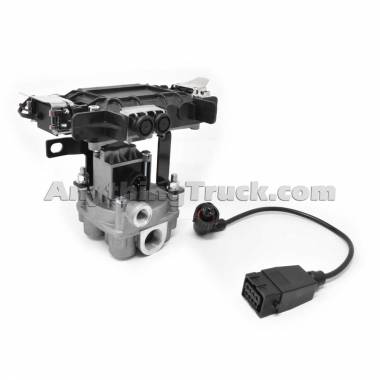

Cross References: 400 500 101 0, 4005001010, 815-4005001010, S4005001010, 650-S4005001010, 4721950330, 472 195 033 0, 599-7001, AQ960503, AQ960510, 13599208-2, 135992082
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
