Stemco 309-0903 Guardian HP Wheel Seal for 34,000# Mack Drive Axles

740-3090903
Not Yet Rated | Write the First Review
$47.58
Stemco 309-0903 Guardian HP Wheel Seal for 34,000# Mack Drive Axles
Processing...
Availability
Qty in Stock: 2
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details


Special Notes
Mack Western 11QJA191, 192 hub and drum assembly or Motor Wheel 87125 hub or 87119-B or 87226-F hub and drum assembly with 582 inner bearing cone must use OE< bearing spacer 35AX1411. Install OEM spacer before installing axle ring. Press axle ring on until flush with bearing side of bearing spacer.
Product Description
Stemco Guardian HP wheel seal
Stemco Part Number: 309-0903
Installs onto the axle spindle
One seal for one wheel
Used in Mack 34,000 pound drive axles
For Bore Diameter: 5.75"
Width: 0.516"
For Shoulder O.D.: 4.50"

Found in applications with the following bearing combinations:

Inner Bearing
Cup/Cone
Outer Bearing
Cup/Cone
Universal Axle

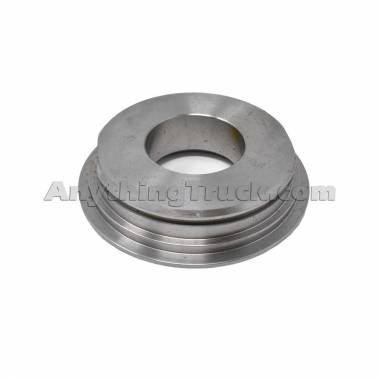

Tool Head
572/580
572/582
563/567555-5072

Cross References: Stemco 392-9094, CR 45099, CR 45097, CR 45108, National 370022A, 5 Star 380022A, Outrunner 856
A cross reference listing means that this seal is a suitable replacement for the part numbers listed. Please compare the seal details to your seal to be sure this is correct.

The product shown above may not accurately depict the actual product.
