Pro LED MS75AC Amber/White LED Square Warning Beacon, 10 Flash Patterns, Surface Mount, 12/24V Part Number: 689-MS75AC

Not Yet Rated | Write the First Review

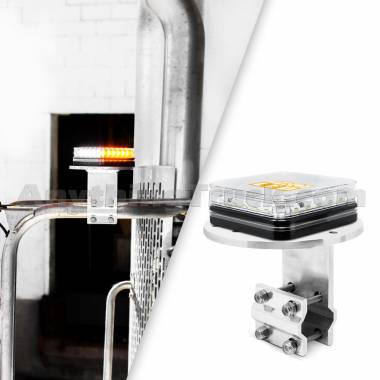

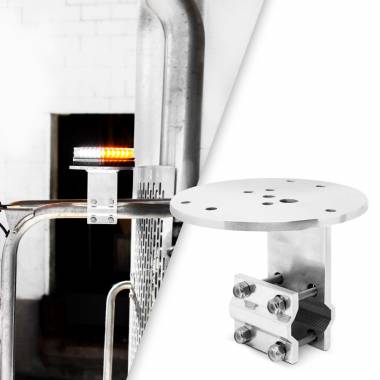

The Pro LED MS75AC is a Class 1 amber and white LED square warning beacon with 24 LEDs behind a clear lens and 10 selectable flash patterns. The LEDs are arranged so that each color occupies adjacent corners of the square — amber LEDs meeting in one corner, white LEDs meeting in the adjacent corner — rather than opposite corners. When mounted on a diagonal with a compatible mirror bracket (sold separately), one corner points forward and the other rearward, making both the amber and white LEDs visible from the front and rear of the vehicle simultaneously. IP67 rated. Permanent surface mount with stainless steel hardware included. Note: momentary switch for pattern selection not included. Multi-volt 12V/24V.

Product Description

Manufacturer: Pro LED

Part Number: MS75AC

Classification: SAE J845 Class 1

Function: Warning Beacon

LED Colors: Half Amber, Half White

LED Arrangement: Amber and White LEDs each occupy adjacent corners

Diode Count: 24

Lens Color: Clear

Flash Patterns: 10 Selectable

Mounting: Permanent Surface Mount

Length: 4"

Width: 4"

Height: 1"

Water/Dust Resistance: IP67

Includes: Stainless Steel Mounting Hardware

Note: Momentary switch for pattern selection not included

Voltage: Multi-Volt 12V/24V

Regulatory Compliance: SAE J845 Class 1, ECE R65, ECE R10, California Title 13

Cross References: 689-MS75AC, MS75AC
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

MS75A Owners Manual (.pdf)

We've been selling Pro LED lights and accessories since 2006, and they're always innovating and coming up with new products. We're sharing a copy of the latest Warning Light Products brochure from Pro LED and all of the products are available with the same great service you rely on from AnythingTruck.com.

Pro LED Warning Lights and Accessories Brochure (.pdf)
