Pro LED ML36AC Class 1 11" Amber/White LED Warning Light Bar, 36 LEDs, 20 Flash Patterns, 12/24V Part Number: 689-ML36AC

Not Yet Rated | Write the First Review

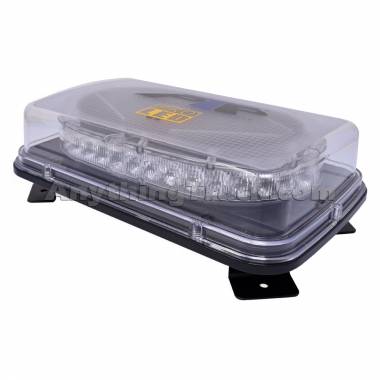

The Pro LED ML36AC is a Class 1 11" amber and white LED warning light bar with 36 high-power SMD LEDs flashing in amber and white, and 20 selectable flash patterns. Supports synchronization of multiple light bars. Reverse polarity protected. UV-resistant polycarbonate lens. Four-corner foot mount elevates the bar slightly off the mounting surface. Note: momentary switch for pattern selection not included. SAE J845 Class 1 certified. Multi-volt 12V/24V.

Product Description

Manufacturer: Pro LED

Part Number: ML36AC

Classification: SAE J845 Class 1

Function: Warning Light Bar

LED Technology: SMD

LED Colors: Amber, White

Diode Count: 36

Lens Color: Clear

Lens Material: UV-Resistant Polycarbonate

Flash Patterns: 20 Selectable

Multi-Bar Sync: Yes

Reverse Polarity Protected: Yes

Mounting: 4-Corner Foot Mount

Length: 11"

Width: 6.82"

Height: 2.83"

Current Draw: 4.14A @ 12.8V, 2.39A @ 25.6V

Note: Momentary switch for pattern selection not included

Voltage: Multi-Volt 12V/24V

Regulatory Compliance: SAE J845 Class 1, ECE R10

Cross References: 689-ML36AC, ML36AC, 5550CAC
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

We've been selling Pro LED lights and accessories since 2006, and they're always innovating and coming up with new products. We're sharing a copy of the latest Warning Light Products brochure from Pro LED and all of the products are available with the same great service you rely on from AnythingTruck.com.

Pro LED Warning Lights and Accessories Brochure (.pdf)
