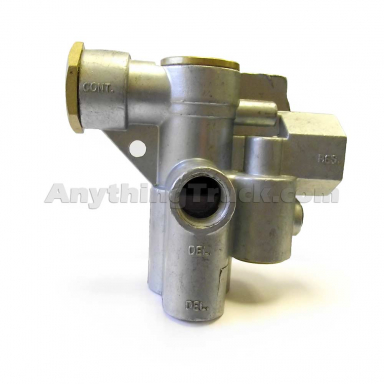

Sealco 110800 Spring Brake Control Valve - Spring Brake Priority, Replaces Bendix SR-5

Product Details

Special Notes

None

Product Description

Manufacturer: Sealco

Part Number: 110800

The spring brake priority immediately provides supply air to release the spring brakes and the internal pressure protection valve opens to fill the reservoir at approximately 80 psi.

Complies with FMVSS 121 regulations including Docket 90-3 effective October 8, 1992

Designed for use with a single reservoir on a typical single or tandem axle trailer

May also be used with two 1,400 cubic inch (nominal) reservoirs on tandem axle trailers

4 Delivery ports

Supply Port: 3/8" NPT

Control Port: 3/8" NPT

Reservoir Port: 1/2" NPT

Delivery Ports: 3/8" NPT

Direct replacement for Bendix's SR-5 spring brake control valve

Cross References: 680-110800SEA, 110800SEA, 110800, AV110800, E-SL110800, ESL110800, SLC 110800, GTA-110800, SEA110800, WA110800, TWD110800, S-20221, S20221, SA110380, TV110800, K110800, SL-110800, SL110800
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
