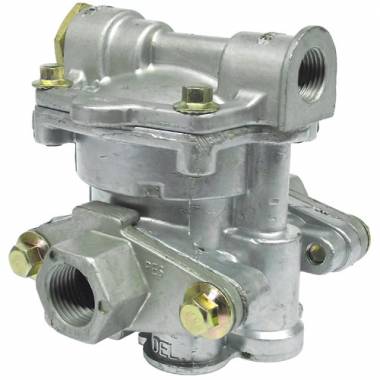

Sealco 110170 Spring Brake Control Valve - Supply & Control Ports 90 Degrees From Reservoir Ports

680-110170
Not Yet Rated | Write the First Review
$86.78
Sealco 110170 Spring Brake Control Valve - Supply & Control Ports 90 Degrees From Reservoir Ports
Processing...
Availability
Qty in Stock: 6
Add'l Qty (1-4 days): 11
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details


Special Notes
none
Product Description
Manufacturer: Sealco
Condition: New
The protected reservoir system is used on trailers with two reservoirs and allows air to be supplied from the second reservoir in the event of a single leakage failure.
Complies with FMVSS 121 regulations including Docket 90-3 effective October 8, 1992
Supply and control ports offset 90° from reservoir ports
4 Delivery ports
Supply port size = 3/8" pipe thread
Control port size = 3/8" pipe thread
Reservoir port A size = 1/2" pipe thread
Reservoir port B size = 1/2" pipe thread
Delivery port size = 3/8" pipe thread

Cross References: 110120, 110140, 110147, 110180, 110190, 111180, 111190, 112170, 112180, 112190
A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
