MGM 3230951 TR3030LP3 Long Stroke Spring Brake with Welded Clevis - 2.25" Push Rod Length

460-3230951
Not Yet Rated | Write the First Review
$105.31
MGM 3230951 TR3030LP3 Long Stroke Spring Brake with Welded Clevis - 2.25" Push Rod Length
Processing...
Availability
Qty in Stock: 21
Add'l Qty (1-4 days): 33
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details


Special Notes
none
Product Description
Manufacturer: MGM Brake
Part Number: 3230951
Complete long stroke service and spring brake assembly
Type 30 spring brake chamber
Type 30 service brake chamber
Stroke: 3.0 (Long)
Includes spring cage bolt
Spring chamber permanently attached for safety
Epoxy-coated internal parts for long life
MGM Spring Brake Schematic
Combination Spring Brake Specifications
A: 9.99" (Length of chamber from face of stud housing to the end of the spring housing)
B: 7.61" (Length of Piggyback center body to end of spring housing)
C: 8.32"
D: 8.21" (Dimension at rolled seal)
E: 4.75" (Stud Spacing)
F: 5/8"-11 UNC (Stud Size)
G: 5/8"-18 UNF (Push rod size)
X: 2.25" (Push rod length)

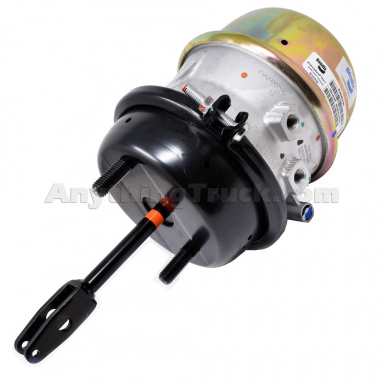

Cross References: 3230951X, NT3030ELS-WC, 5554-3230951, MGM3230951, ZAJ3530951, 85112719
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. Check the description to be sure it will work in your application.
