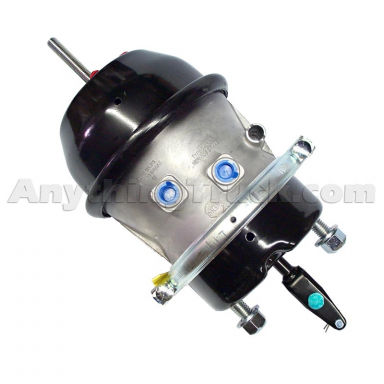

MGM 3224951 Long Stroke 2430 Spring Brake with Welded Clevis - 2.25" Push Rod Length

Part Number:460-3224951
Not Yet Rated | Write the First Review
$190.84 USD
MGM 3224951 Long Stroke 2430 Spring Brake with Welded Clevis - 2.25" Push Rod Length
Processing...
Availability
Qty in Stock: 3
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details


Special Notes
none
Product Description
Manufacturer: MGM Brake
Part Number: 3224951
Complete long stroke service and spring brake assembly with welded clevis
Type 30 spring brake chamber
Type 24 service brake chamber
Stroke: 3.0" (Long)
Push Rod Length: 2.25" to center of large clevis pin (With Brake Released)
Includes spring cage bolt
Spring chamber permanently sealed for safety
MGM Spring Brake Schematic
Combination Spring Brake Specifications
A: 10.19" (Length of chamber from face of stud housing to the end of the spring housing)
B: 7.81" (Length of Piggyback center body to end of spring housing)
C: 7.38"
D: 8.21" (Dimension at rolled seal)
E: 4.75" (Stud Spacing)
F: 5/8"-11 UNC (Stud Size)
G: 5/8"-18 UNF (Push rod size)
X: 2.25" (Push rod length)

Cross References: 3224951, 460-3224951, MGM3224951, 5554-3224951, ZAJ3224951
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. Check the description to be sure it will work in your application.
