SAF Holland XA‑351‑A1‑06‑L‑P FW35 ILS No‑Tilt Fifth Wheel Top Plate, Left‑Hand Release Part Number: 370-XA351A106LP

Not Yet Rated | Write the First Review

The SAF Holland XA‑351‑A1‑06‑L‑P is a FW35 Series ILS No‑Tilt fifth wheel top plate with left‑hand release, designed for applications where articulation is provided by the trailer rather than the fifth wheel. Built from cast steel and engineered for durability, the No‑Tilt configuration provides maximum stability for dump trailers and vocational equipment operating in uneven or off‑axis conditions.

If you're converting an existing FW35 ILS sliding fifth wheel to a No‑Tilt configuration for dump trailer or vocational use, here are the components required for a complete retrofit:

1. This SAF Holland XA‑351‑A1‑06‑L‑P ILS No‑Tilt Top Plate

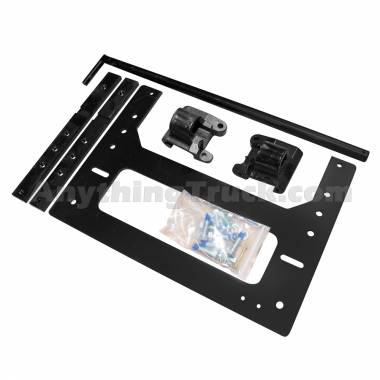

2. Holland RK‑NT‑ILS‑S No‑Tilt Slider Retrofit Kit
3. Holland RK‑10689‑3 ILS 9" Slider Bracket Kit
4. Holland RK‑10606‑1 ILS Slider Base Rebuild Kit
5. Holland ILS Slider Base (XA‑J24, XA‑J36, or XA‑J48)
6. Slider Base Mounting Angles

Depending on what you already have installed, you may only need the XA‑351‑A1‑06‑L‑P top plate and the RK‑NT‑ILS‑S retrofit kit. These two components are sufficient when converting an existing Holland ILS sliding fifth wheel equipped with 9" slider brackets.

Note: Holland no longer supports weld‑on conversion kits. All No‑Tilt retrofits must use bolt‑on ILS components to maintain structural integrity and warranty compliance.

Product Description

Manufacturer: SAF Holland

Part Number: XA-351-A1-06-L-P

Model: FW35 ILS No-Tilt Fifth Wheel Top Plate

Release Handle: Left-Hand

Condition: New

Performance Ratings

Maximum Vertical Load: 55,000 lbs

Maximum Drawbar Pull: 150,000 lbs

Duty Rating: Standard to Severe Duty

Warranty: 6 Years / 600,000 Miles

Design Features

Configuration: No-Tilt (Rigid Top Plate)

Top Plate Material: Cast Steel

Lock Mechanism: Precision TwinLock™

Lock Indicator: Visible Lock Indicator Shaft

Release Handle: E‑Z Grip™ Ergonomic Design

Articulation Pocket Liners: NoLube™ (Reduced Maintenance)

Lock Adjustment: Infinite Adjustment Range

Compatibility

Series: FW35 ILS Sliding Fifth Wheel

Mounting Style: ILS Slider Base (XA-J24, XA-J36, XA-J48)

Application: No-Tilt Vocational/Dump Trailer Use

The FW35 No‑Tilt design provides rigid fore‑aft stability for applications where the trailer supplies its own articulation. SAF‑HOLLAND’s cast‑steel top plate, visible lock indicator, and E‑Z Grip™ release handle enhance durability and ease of use, while the precision TwinLock™ mechanism “immediately captures the kingpin preventing impact bounce out for a quick and reliable couple.” The No‑Tilt configuration is specifically engineered for dump, vocational, and uneven‑terrain operations where eliminating fifth wheel tilt improves safety and reduces frame stress.

Cross References: XA-351-A1-06-L-P, 370-XA351A106LP, XA351A106LP, XA351A106L, XA-351-A1-06-L, Holland XA351A106LP, Holland 351A106LP
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
