SAF Holland PH-30SA41 15-Ton Swivel Type Pintle Hook with Spring Cushion, Bolt-Through Mount System

    SAF Holland PH-30SA41 15-Ton Swivel Type Pintle Hook with Spring Cushion, Bolt-Through Mount System

    Code: 370-PH30SA41
    Not Yet Rated | Write the First Review
    Qty in Stock: 14
    Add'l Qty (1-4 days): 10
    Quantity in Stock reflects available inventory as of 5:00 AM CST.
    $255.00
    Quantity:


    Special Notes
    none
    Product Description
    Manufacturer: SAF Holland
    SAF Holland PN# PH-30SA41
    Includes Holland's Fast Latch mechanism for one-handed operation
    Swivel action provides torsion relief
    Spring cushion provides shock absorption at the coupling
    Heat treated cast alloy steel body
    Drawbar Eye Dimensions: 2" to 3" with 1.25" to 1.625" diameter section
    Tested in accordance with SAE J847 (Type II)
    MGTW: 30,000 lbs.
    Max Vertical Load: 6,000 lbs.

    SAF Holland PH-310SA41 Tech Sheet (.PDF 492 kb)

    The PH-30SA41 is a multifaceted swivel style and clamp-mount pintle hook designed for over-the-road and off-road applications where a significant amount of articulation is desired for torsional relief. The spring provides shock absorption at the coupling - ideal for heavier-duty municipality, utility, and construction applications.

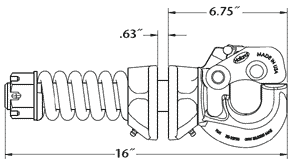

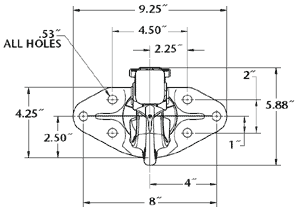

    Holland PH30SA Series Mounting Dimensions Holland PH30SA41 Mounting Dimensions

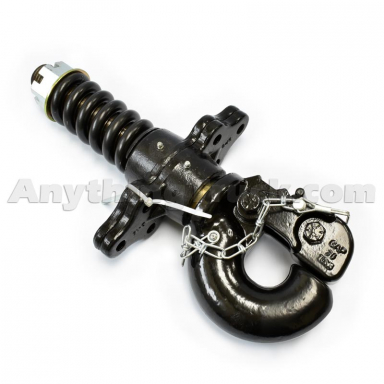

    Cross References: PH30SA41, PH-30SA41, BP200, HLDPH30SA41, 3889-PH30SA41
    A cross reference listing means that this item may be a suitable replacement for the part numbers listed. Please double check the product description carefully to make sure this part will fit your application.
