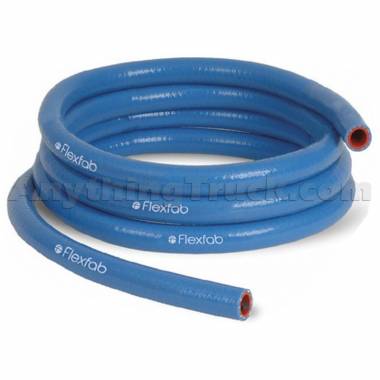

FlexFab 5526-100 1" Silicone Heater Hose, Sold by the Foot Part Number: 292-5526100

Not Yet Rated | Write the First Review

FlexFab 5526 series silicone heater hose is sold by the foot. Buy the 200' roll, and you'll receive a bulk discount.
FlexFab does not guarantee continuous lengths on their rolls, so we cannot guarantee continuous lengths on longer orders.

With 1-ply of reinforcement, this hose meets or exceeds the operating requirements of SAE J20 R3 Class A and TMC RP303B Class I Grade II.

Special Notes

none

Product Description

Manufacturer: FlexFab

Part Number: 5526-100

Silicone Heater Hose

Inside Diameter: 1.00"

Outside Diameter: 1.33"

Wall Thickness: 0.14/0.17"

Minimum Bend Radius: 5.00"

Actual Burst Pressure: 250 PSI

Burst Pressure: 175 PSI (SAE J20 R3)

Burst Pressure: 125 PSI (TMC)

Temperature Range: -65°F (-54°C) to +350°F (+177°C)

Use clamp 2582-0016

Cross References: 5526-100, 5526100, 292-5526100, 5526-100x25, 5526-100x50, 5526-100x250, 5526-100x300
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
