888197 Air Bag, Replaces Neway 90557230 and Firestone W01-358-8197 Air Springs

Product Details

Special Notes

This air bag uses one of the most popular rubber bellows in the trucking industry. It is important to check all of the measurements carefully if you are replacing a Firestone, Goodyear, or Contitech air bag.

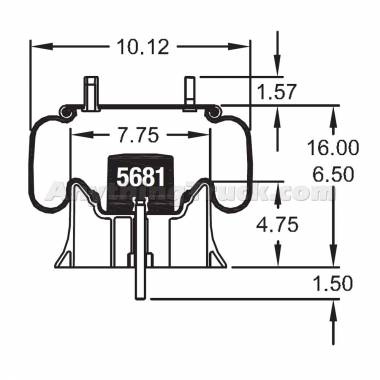

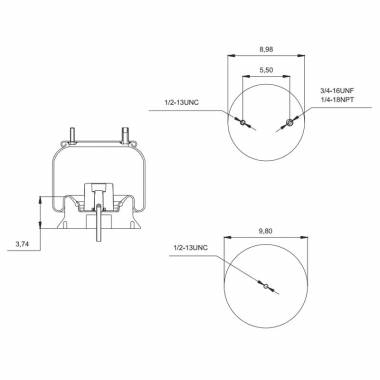

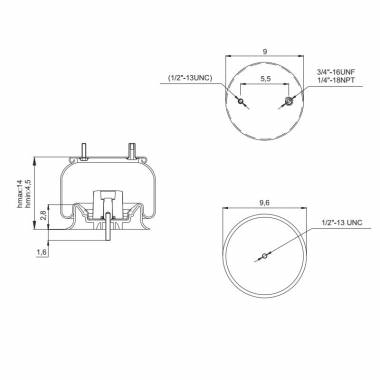

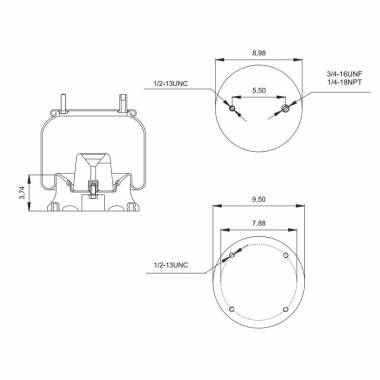

We stock several of the air bags that use this rubber bellows: 280-8197, 280-8204, 280-9053, 280-9105, 280-9325, 280-9365, and 280-9366

Product Description

Manufacturer: Spring Pro

Spring Pro Bellows Number: 888197

Goodyear Bellows Number: 566-24-3-067

Goodyear Part Number: 1R12-562

Firestone Bellows Number: 1T15M-2

Firestone Part Number: W01-358-8197

Replaces: Neway 90557230

Cross References: 90557230, 1R12562, 1R12-562,
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
