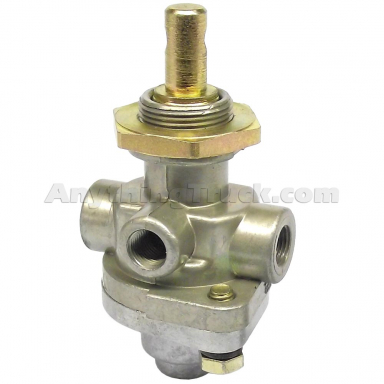

Bendix OR276567X PP-1 Push/Pull Valve, 40 PSI ReleasePart Number:061-OR276567X
- Special Notes
- Product Description
- Manufacturer: Bendix
- Part Number: OR276567X
- Condition: Remanufactured
- Release Pressure: 40 PSI
- Supply Port: 1/8" NPT
- Delivery Port: 1/8" NPT (2)
- Exhaust Port: 1/8" NPT
- Shaft Size: 3/8"

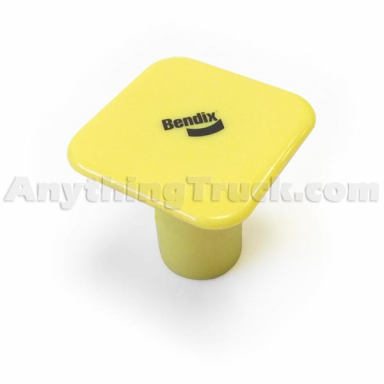

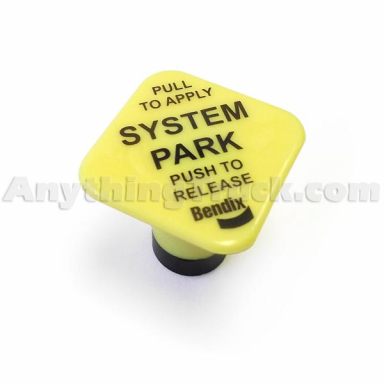

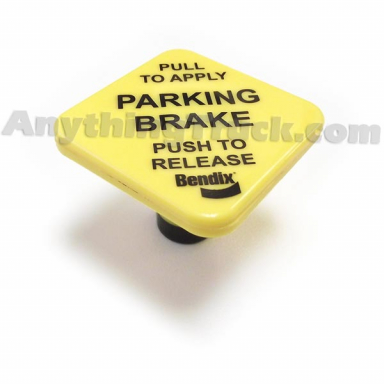

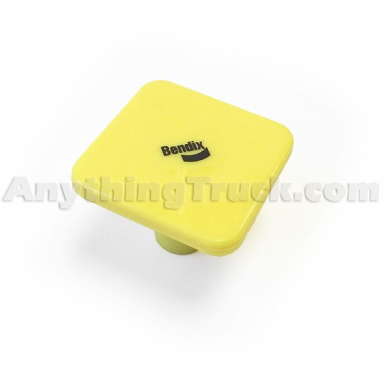

- Button and mtg. nut are NOT furnished with this valve
Push-Pull control valves are most often mounted on the vehicle dash board and are used for a variety of control applications. The PP-1 and PP-2 are pressure sensitive, normally closed, on/off control valves which automatically return to the exhaust (button out) position when supply pressure is below the required minimum. They may be manually operated to either position when pressure is above the required minimum. Pressure settings and button configuration and lettering may vary, depending on application.
The PP-1 is commonly used to control parking and emergency brakes. This valve is also used in conjunction with the TP-2 Tractor Protection valve in pre-121 single circuit tractor air systems.
Cross References: 276567, 287054, E0HT2A622EA, EOHT2A622EA, 101279, 101279X, 101478, 101478X, 101850, 101850X,
276567, 284171, 284171X, 284726, R955276567, RKN20001, C3TA2A622A, XC353730, 15149895, 15149896, 15633206,
2000913, 2014412, 76049094, KN20021, 20QE278P4, 20Q278P5, 20QE278P8, 380509C92, ZAC276567, LPP3619,
AV276567, S5675, 401135, 14028, 034013, 1092903, 25BG0460, 27116875, 33030319
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
