- Special Notes
- Product Description
- Manufacturer: Bendix
- Part Number: 284358X
- Condition: Remanufactured
- Bendix reman valves have the same warranty as new valves
- Pressure Range: Adjustable from 105-125 psi
- High temperature o-rings and waterproof cover
- Includes gasket and pipe plugs

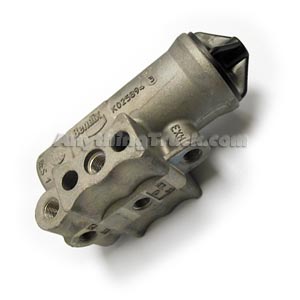

The Bendix D-2 governor controls the pressure in the air system. The compressor runs continuously while the engine is running, so the D-2 governor activates the compressor's unloader mechanism when system pressure reaches the governor's cut-out pressure. It deactivates the unloaders once system pressure has dropped to the governor's cut-in pressure. While unloaded, the compressor simply pumps air from one cylinder to the other rather than send it to the tank.
Cross References: 284358N, 284358, 284358X, 102178, 102178X, 108818, 227435, 275491, 275491X, 275707, 275707X, 18537, KN18500X, KN18530, KN18537, VHD18537
A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
