Bendix K095875 MV-3 Control Valve, 1/4" Unthreaded Mounting Holes (Special Order) Part Number: 060-K095875

Not Yet Rated | Write the First Review

This is a special order item with an estimated lead time of 1-2 weeks before it ships, and we'll contact you with a verified lead time after you place an order.

Please call, email, or chat for a definite lead time if you're in a hurry.

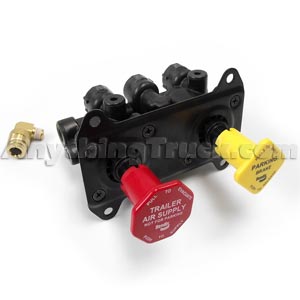

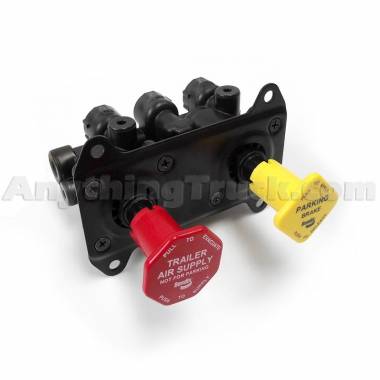

IMPORTANT: The Bendix K095875 is a kit that includes an 800518 MV-3 dash valve and a 1/8" NPT x 3/8" PTC 90° fittting. We recommend that you purchase those two parts separately because its much less expensive. See the bottom of this page.

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number K095875

Condition: New

Bendix MV-3 dash valve kit

Supply Ports: 1/4" NPT

Delivery Ports: 1/4" NPT

Exhaust Port: 1/4" NPT

Aux Port: 1/8" NPT

Mounting Holes: 1/4" unthreaded

Replaces obsolete P/N 101437 MV-2 dash valve

Includes valve, auxiliary port fitting, and installation instructions

The Bendix MV-3 Dash Control Module is a dual-button, push-pull valve that controls the tractor and trailer parking brake circuits from a single dash-mounted assembly. It consolidates tractor protection, trailer supply, and system park functions into one compact unit, replacing any existing two- or three-valve push-pull system with reduced plumbing complexity.

The MV-3 uses an integrated dual-circuit supply check valve to manage both primary and secondary reservoir connections, providing automatic trailer brake application if supply pressure drops to approximately 20-45 PSI, with a non-override trip piston activating at 20 PSI. The non-metallic, non-corrosive valve body has all air connections at the rear, with an optional auxiliary port available on select configurations.

Cross References: 5005079, 101437, 101437N, 102027, K095875, 340106, 14309481, 15503262, KN20615, 479301390B, 42042575, K101437, 20QE3187M, 20QE3187RM, 745-101890, 503140C91, 90004988, AV101437, 321569, 401232, 1600664, G15503262
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

Instructions for changing from a Bendix MV-2 to a Bendix MV-3 (.pdf)
