Bendix 800530 MV-3 Control Module, 1/4"-20 Threaded Mounting Holes Part Number: 060-800530

2

| Write a Review

Ratings Snapshot

5.0

out of 5

5 (2)

4 (0)

3 (0)

2 (0)

1 (0)

Would recommend this product.

100%

This MV‑3 variant (Bendix 800530) features 1/4"-18 NPT supply, delivery, and exhaust ports along with a 1/8"-27 NPT auxiliary port. It uses 1/4"-20 threaded mounting holes and can replace the obsolete Bendix MV‑2 (P/N 101890) when used with the required 016262 auxiliary port fitting.

Special Notes

Can replace obsolete Bendix MV‑2 P/N 101890 when used with auxiliary port fitting 016262.

Product Description

Manufacturer: Bendix

Part Number: 800530

Condition: New

Supply 11 Port: 1/4"-18 NPT

Supply 12 Port: 1/4"-18 NPT

Delivery 21 Port: 1/4"-18 NPT

Delivery 22 Port: 1/4"-18 NPT

Exhaust Port: 1/4"-18 NPT

Auxiliary Port: 1/8"-27 NPT

Mounting Holes: 1/4"-20 threaded (4x)

Tractor Trip Pressure: 30 ± 10 PSI

Trailer Trip Pressure: 35 ± 10 PSI

Trailer Override Pressure: 25 ± 5 PSI

Button(s) Included: Yes

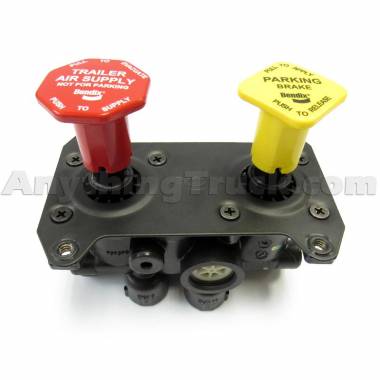

The Bendix MV-3 Dash Control Module is a dual-button, push-pull valve that controls the tractor and trailer parking brake circuits from a single dash-mounted assembly. It consolidates tractor protection, trailer supply, and system park functions into one compact unit, replacing any existing two- or three-valve push-pull system with reduced plumbing complexity.

The MV-3 uses an integrated dual-circuit supply check valve to manage both primary and secondary reservoir connections, providing automatic trailer brake application if supply pressure drops to approximately 20-45 PSI, with a non-override trip piston activating at 20 PSI. The non-metallic, non-corrosive valve body has all air connections at the rear, with an optional auxiliary port available on select configurations.

Cross References: 800530, 060-800530, K095876, 5005087, 101890, 3918398, 5005069, BW 800530, BW800530, 745-800530, TWDBEN800530, BEN800530, BAN800530, BX800530, ZAC800530, 800530BXW
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

Instructions for changing from a Bendix MV-2 to a Bendix MV-3 (.pdf)
